Product Details:
Payment & Shipping Terms:
|
| Type:: | Micro-Computer Control Automatic Genset | Alternator: | Stamford, Meccalte, Faraday, ... |
|---|---|---|---|
| Output Type: | AC Three Phase | Frequency: | 50 / 60Hz |
| Insulation Class: | H | Speed: | 1500 / 1800 Rpm |
| Excitation Mode: | Self-Excited | Export Markets: | Global |
| Rated Voltage: | 220V/380V, 230V/400V, 240V/415V | Installation Method: | Fixed |
| Highlight: | marine diesel genset,Marine Genset |
||
• Economical: Marine Diesel Engine Generating Set is one of the lowest fuel consumption in the world.
• High reliability and long life span.
• Perfect starting ability: Can be start successfully at -10 Degree Centigrade without any accessories.
• Perfect low load condition: The air inlet system choose "HELLO" technical to improve burning performance and reduce fuel consumption.
• Convenient maintenance: simple&reliable structures and L line cylinders provides convenient maintenance and inspection .
• EIAPP, Meet requirements of IMO for NOx Standard.
• CCS certificate is standard in China.

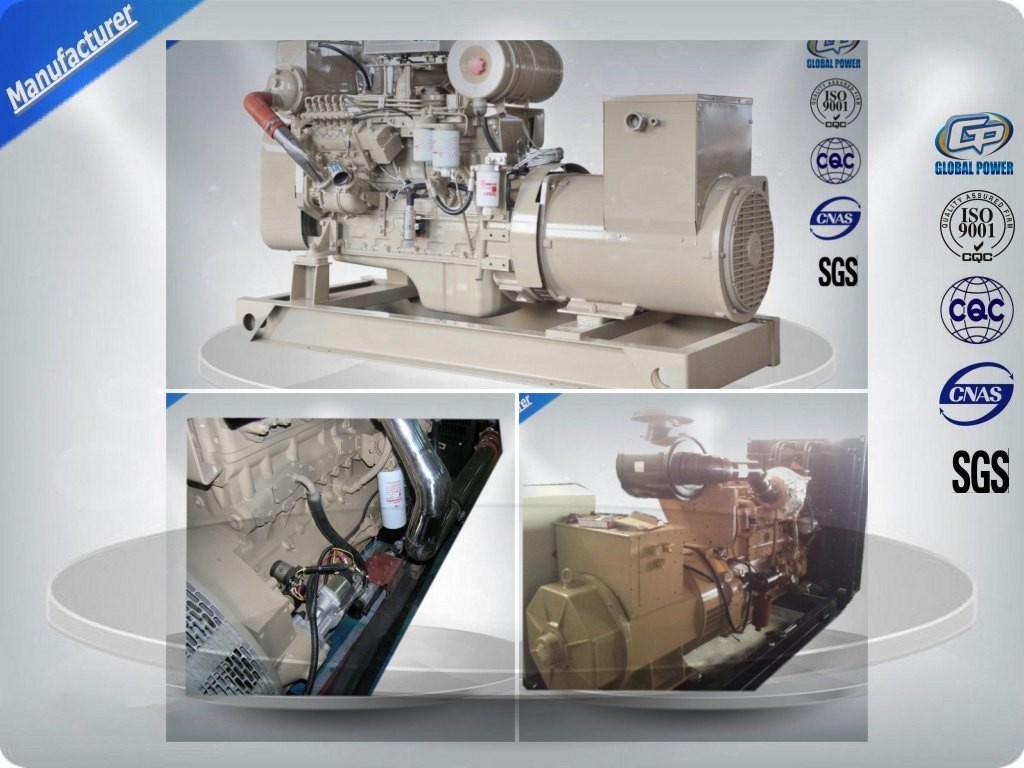

Complete Cummins Marine Diesel Generator including marine diesel engine, alternator, heat exchanger+water pump or radiator, standard control system, circuit breaker, absorber, filters, testing report, marine class certificate, user books and other accessories etc..
Specification:
|
Electrical Parameters |
50HZ, 400V, 3P/4W, PF=0.8 |
|
(other voltages are available) |
|
|
No of Cylinders and Type |
6 in Line |
|
Displacement (L) |
26.58 |
|
Bore×Stroke (mm) |
170×195 |
|
Rotation Speed (rpm) |
1500 |
|
Prime Engine Power (kW/HP) |
650/871 |
|
Cooling Type |
Water Cooled by Heat Exchanger+Water Pump |
|
(Fan Radiator is optional) |
|
|
Starting Method |
24V Electrical (air start, spring start and double electrical start is optional) |
|
Alternator Model |
Marathon, Stamford, Siemens or Equal |
|
(Brushless, Self-excited,IP23) |
|
|
Controller |
Standard Engine Control Panel |
|
(Automatic Enda Controller is optional) |
|
|
Genset Overall Size (mm) |
3480×1349×2130 |
|
Gross Weight (kg) |
5500 |
|
Marine Classification Society |
CCS is standard, BV is optional for Cummins Engine |
Global Power Service:
Ettes Power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested. Warranty is according to our standard conditions: 12 months or 1000 running hours, subject to the earlier one. Furthermore, Ettes Power will provid life-span technical support and spare parts at manufacture prices.
1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience
of more than 10 years. Our total production capacity is about 20,000 units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000
fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator
sets as per your specific requirements.
4. We provide professional & in time service after sale.
