Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Cummins | Frequency: | 50 Hz |
|---|---|---|---|
| Alternator: | Stamford / Meecalt / Copy Stamford | Rated Voltage: | 400 / 230 V |
| Dimension (l*w*h/mm）: | 4950*2253*2400 | Weight(KG): | 8500 |
| Control Module: | DeepSea , Comap , Smartgen. | Wave Distortion: | ≤5%, Sine Wave |
| Highlight: | Emergency Generator Set,power generating sets |
||

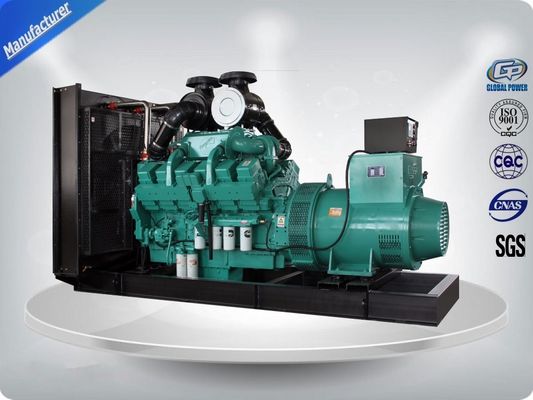

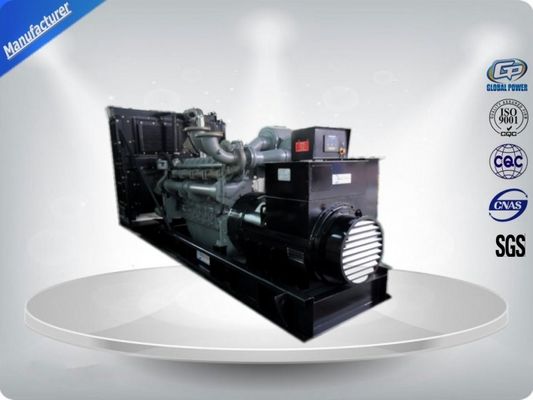

Brushless Open Type 3 Phas Class H Insulation, with Cummins engine Diesel Generator Set
Our advantages :
1. Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
Technical Specifications :
|
Genset |
Prime Power (kw/kva) |
1000/1250 |
|
|
Standby Power (kw/kva) |
1100/1375 |
||
|
Voltage Recovery Time |
≤1S |
||
|
Rated Current (A) |
1801 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
24V 100Ah |
||
|
Fuel Tank Capacity(L) |
/ |
||
|
Engine |
Engine brand |
Cummins |
|
|
Output Power (kw) |
1087 |
||
|
Cylinder No. & Config. |
16, in 'V' |
||
|
Combustion System |
direct injection |
||
|
Compression Ratio |
13.9:1 |
||
|
Displacement (L) |
50.3 |
||
|
Bore X Stroke (mm) |
159*159 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Electronical |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday… |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Features and benefits :
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
Precision measure and display of:
Our Picture :
Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Cummins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door
Standard Supply Scope:
