250KVA Air Cooled Diesel Generator With Cummins Engine NT855-GA

: Large Image : 250KVA Air Cooled Diesel Generator With Cummins Engine NT855-GA

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	CE / ISO
Model Number:	GC200; GPM520

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiable
Packaging Details:	plastic foam or plywood case packing
Delivery Time:	25 days after receiveing the down-payment
Supply Ability:	2000 sets / year

Contact Now

Detailed Product Description

Prime Power:	200 ~ 600KW	Engine Model:	NT855-GA; S6R2-PTA
Cooling System:	Water-cooled	Rated Frequency:	50 / 60 HZ Available
Engine Speed:	1500 / 1800 Rpm	Control Modue;:	DSE4620
Type:	Open, Silent, Trailer....	Others:	ATS, Fuel Tank...available
Highlight:	brushless synchronous generator , brushless alternator generator

250KVA Diesel Generator With Cummins engine NT855-GA, Mitsubishi diesel generators for sales with cheap price

feature:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

Technical Specifications :

Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	576
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Fuel Tank Capacity(L)	800
Continuous Running Time(hr.)	8

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door.

Alternator:

Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%

feature:

Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2/3 pitch winding as standard, to avoid excessive neutral currents
Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
Easy access for installation and maintenance
IP23 as standard
Self-excited control system
Resist of corruption of oil and acid

Control system :

DSE4620 controller

Main features:

Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
Security password-protected programming levels
All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
Power supply range is wide, accommodating to different starting battery voltage environment
Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

Our Picture :

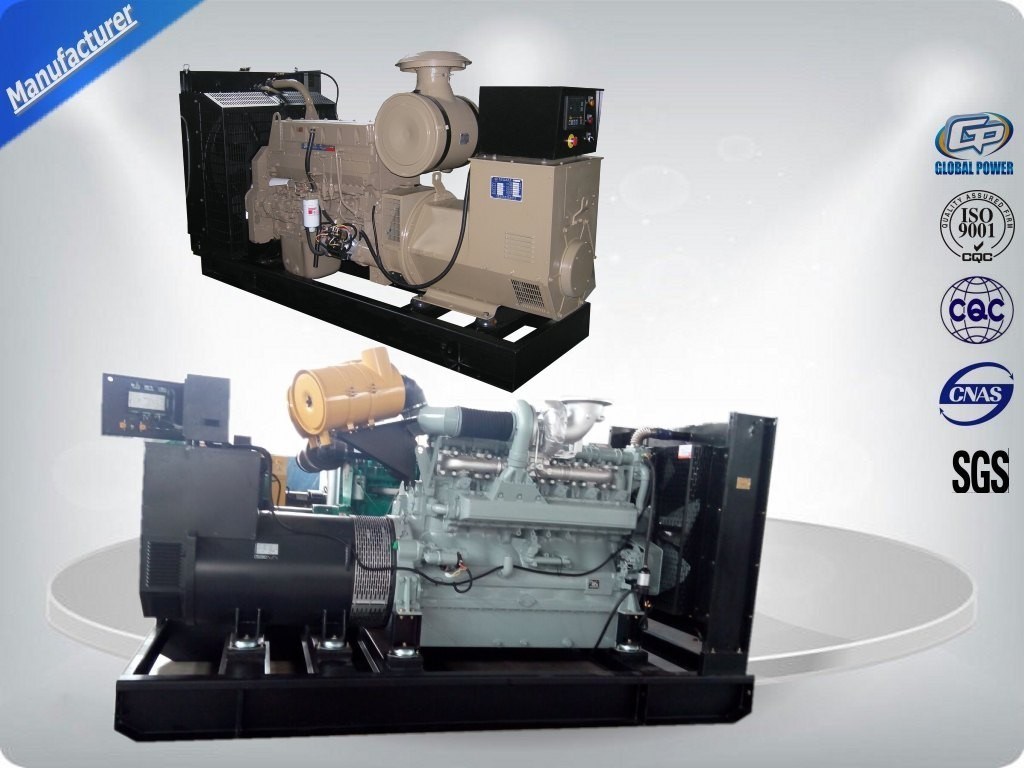

250KVA Air Cooled Diesel Generator With Cummins Engine NT855-GA

Standard Supply Scope:

Advanced design and excellent processed: The engine with strong power, can adapt to any condition, such as high strength and heavy load.
Integrated design: The cylinder block and head are designed as multi-funtional parts so that the number of the partshas reduced 40% compare with competitive engines. The failure rate has markedly reduced.
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card

Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.

Inspection and Test:

Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers satisfaction at the manufacturers cost.
5. The engine and generator shall be tested individually in accordance with relevant standards specified above.
The completed and individually tested engine and generator shall be assembled onto the base plate with all auxiliaries, instruments and controls for a complete test of the generator set.

Guarantee for Our Generators:

Guarantee Period: One year or 1000hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
24 hours service hot-line is available for customers.
