Product Details:
Payment & Shipping Terms:
|
| Engine Brand:: | MTU, Cummins, Perkins, VMAN Available | Alternator:: | Stamford / Meecalt / Copy Stamford |
|---|---|---|---|
| Engine Model:: | 6R1600G10F | Rated Frequency (Hz): | 50/60 Hz |
| Type:: | Container | Number Of Phase: | 3 |
| Dimension L*W*H/mm: | 8150*2550*2600 | Weight/kg: | 21000 |
| Alternator: | HCI 634J/824 | ||
| Highlight: | marine diesel genset,Emergency Generator Set |
||

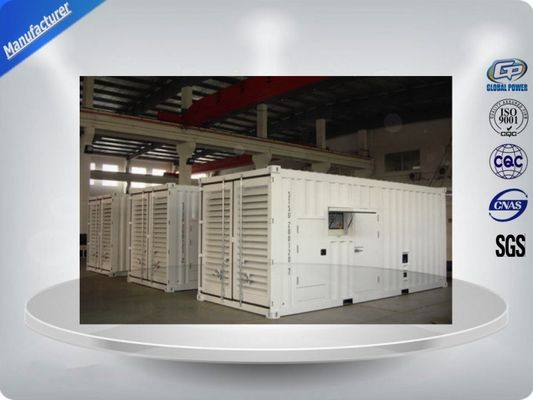

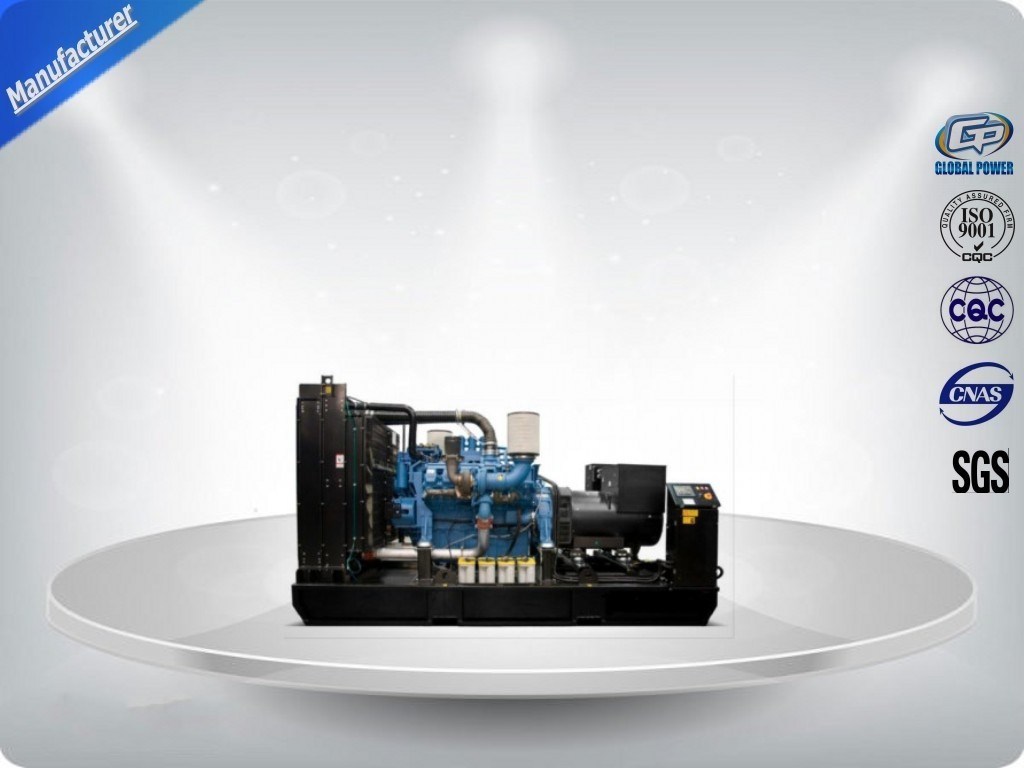

Germany MTU Engine 200 kw diesel generator / Genset Container power plant
| 1. Specification of genset | ||||||||
| Gensets Model | GP M2250 | |||||||
| Prime Power | 200KW/250KVA | |||||||
| Standby Power | 220KW/275KVA | |||||||
| Rated Voltage(V) | 400/230 | |||||||
| Rated Frequency(HZ) | 50 | |||||||
| Rated Speed (rpm) | 1500 | |||||||
| Power Factor(COS) | 0.8(lagging) | |||||||
| Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97;A 10% overload capability is available for a period of 1 hour within a 12-hour of operation. | ||||||||
| Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. | ||||||||
| 2. Specification of diesel engine | ||||||||
| Engine brand | Germany MTU | |||||||
| Engine model | 6R1600G10F | |||||||
| Number of Cylinders | 6 | |||||||
| Cylinder arrangement | in-line | |||||||
| Cycle | Four stroke | |||||||
| Aspiration | Tube | |||||||
| Fuel System | injection | |||||||
| Bore×Stroke (mm×mm) | 122X150 | |||||||
| Displacement (Liter) | 10.5 | |||||||
| Oil Capacity | 34 | |||||||
| Speed Governor | Electrical | |||||||
| Cooling System | Forced Water Cooling Cycle | |||||||
| Overload capacity | 110% | |||||||
| Fuel Consumption at 100% Load (g/kwh) | 201 | |||||||
| Starting Method | DC24V electrical starting | |||||||
| 3. Specification of alternator | ||||||||
| Alternator brand | Stamford | |||||||
| Orgin | wuxi | |||||||
| Alternator model | Stamford SERVICE | |||||||
| Number of Phase | 3 | |||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||
| Number of Bearing | 1 | |||||||
| Protection Grade | IP22 | |||||||
| Altitude | ≤1000m | |||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||
| Insulation Class | H | |||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||
| THF | ≤2% | |||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||
| Transient State Voltage | ≤-15%~+20% | |||||||
| 4. Specification of control Panel | ||||||||
| The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. | ||||||||
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
