Name: 50 / 60 Hz 1800 Rpm Diesel Generator Set AC Output Electric Start 400v 380v With AVR
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: GP P1480
Availability: InStock

MOQ:	1set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets / year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

CE / ISO

Model Number

GP P1480

Rated Power:

1480kw

Standby Power:

1628kw

Frequency:

50/60 Hz

Excited Way:

Self Excited

Engine Cylinder:

Cooling Method:

By Radiator

Regulation:

AVR

Spped:

1500/1800 Rpm

Highlight:

electric diesel generator set

400v diesel generator set

400v diesel electric generator

Product Description

50 / 60 Hz 1800 Rpm Diesel Generator Set AC Output Electric Start 400v 380v With AVR

Test before shippment:

Each Generator Set shall be put into commission more than 4 hours totally, tested on idle load, fully load and 10% overload
Noise level shall be tested.
All of the meters on the control panel shall be tested.
The appearance of the Set and the label, nameplate shall be tested. "
Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.

Guarantee for Our Generators:

Guarantee Period: One year or 1000hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
24 hours service hot-line is available for customers.

Technical Specifications :
Genset:

Prime Power (kw/kva)	1480/1850
Standby Power (kw/kva)	1628/2038
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	2664
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	480017002550
Open Type-Weight (kg)	9500
Soundproof Type- Dimension (LWH) (mm)	/
Soundproof Type-Weight (kg)	/
Fuel Tank Capacity(L)	/
Continuous Running Time(hr.)	6

Engine:
Model 4016TAG1A

Engine brand	Perkins
Output Power (kw)	1588
Cylinder No. & Config.	16 in “V”
Combustion System	direct injection
Compression Ratio	13.6:1
Displacement (L)	61.123
Bore X Stroke (mm)	160*190
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	316
Fuel Consump. (g/kw·h)	205
Oil Capacity (L)	237.2

Alternator:
Model PI734E

Alternator brand	Stamford
Rated Power (kw)	1520
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%

Control System:

automatic cutter which is suitable for the generator power
urn on key
A device to measure the generators speed
Counter for measuring the Operating hours
Device to measure the current overload with a switched current
A device to measure the battery voltage
Voltmeter with a voltage exchanger
A device to measure the frequency
Thermostat to regulate the voltage
A device to measure the oil pressure
Alerting lamps indicating low and high temperature
Controller of the current increase and short circuit
Emergency stop button

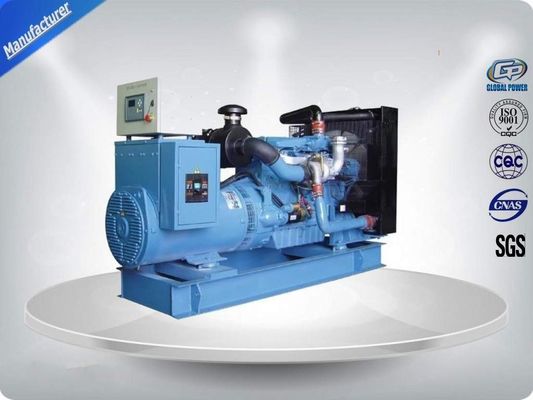

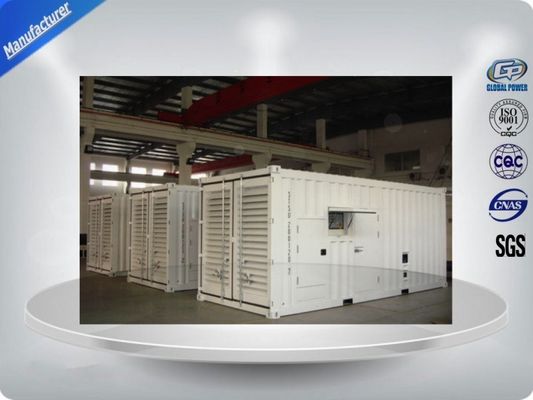

Our Picture :

50 / 60 Hz 1800 Rpm Diesel Generator Set AC Output Electric Start 400v 380v With AVR 2

Standard Supply Scope:

Diesel engine with Alternator
Standard Accessory: Exhaust Silencer, Flexible pipe, Battery & Connenct wire, Operation Manual.
Control system will use Deep Sea DSE AMF module, LCD display all engine parameter, alternator parameter, and fully alarm & protection function.
Radiator is standard , Strat battery and charger

Select Supply Scope:

Silent ,Mobile,Container,weatherproof types canopy and trailer
Connect to main ,all panels:Circut Breaker,ATS,etc
Water & oil heater, oil-water separator, air breaker, base fuel tank.

Genset Construction :

All our gensets are built with original diesel engines coupled to a brushless alternator mounted onto a steel base frame with channel supports on anti-vibrating rubber mountings.
The fuel tank is fabricated of mild steel and is incorporated into the base frame.
The size of the tank is dependent on the size of the generator.
