Elecrical Govering Open Diesel Generator , 175 Kva Water Cooled Genset With Doosan Engine

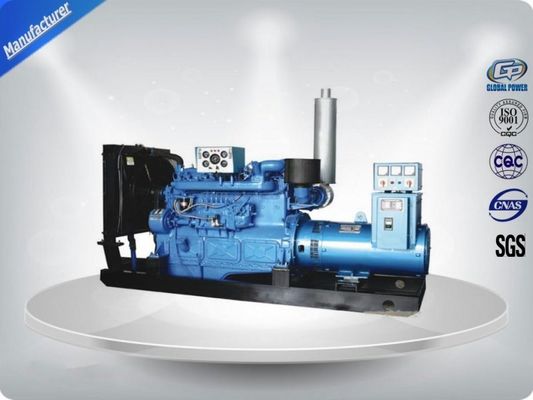

Large Image : Elecrical Govering Open Diesel Generator , 175 Kva Water Cooled Genset With Doosan Engine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	CE / ISO
Model Number:	GP DS140

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiable
Packaging Details:	plastic foam or plywood case packing
Delivery Time:	25 days after receiveing the down-payment
Supply Ability:	2000 sets / year

Contact Now

Detailed Product Description

Prime Power:	140 Kw	Engine Brand:	Doosan
Alternator Brand:	Stamford/Meccalte/copy Stamford	Battery Capacity:	12V 100Ah
Continuous Running Time:	8 Hr.	Cylinder No. & Config.:	6, In-line
Engine Speed:	1500 Rpm	Speed Governing:	Electronic
Highlight:	brushless synchronous generator , brushless alternator generator

Elecrical Govering open diesel generator, 175 kva water-cooled genset with Doosan engine

Basic Specification:

Engine brand, Doosan.
Alternator brand, Meccalte, Stanform, GP...etc
Direct injection internal combustion engine
AC synchronous generator ( single bearing)
Cooling way, radiator with fan & water tank
Open type, closed type ( with sound proof canopy, trailer, container)
Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
Anti-vibration isolaters
Brushless 3 phase
Integral guel tank ( 8 hours)
sound proof, weather proof canopy is optional ( both open type and closed type can be made)
50/60hz
Atomatic alarm system
Insulation, class H

Technical Specifications :
Genset:

Prime Power (kw/kva)	140/175
Standby Power (kw/kva)	154/193
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	253
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah
Open Type-Dimension (LWH) (mm)	27309501520
Open Type-Weight (kg)	1950
Soundproof Type- Dimension (LWH) (mm)	/
Soundproof Type-Weight (kg)	/
Fuel Tank Capacity(L)	/
Continuous Running Time(hr.)	8

Engine:

Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

Model P086TI-1

Engine brand	Doosan
Output Power (kw)	149
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	16.4:1
Displacement (L)	8.071
Bore X Stroke (mm)	111*139
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	44
Fuel Consump. (g/kw·h)	201.9
Oil Capacity (L)	15.5

Alternator:

Main features:

Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2/3 pitch winding as standard, to avoid excessive neutral currents
Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
Easy access for installation and maintenance
IP23 as standard
Self-excited control system
Resist of corruption of oil and acid

Model UCI274G

Alternator brand	Stamford
Rated Power (kw)	145
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%

Controller features:

Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
Security password-protected programming levels
All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
Power supply range is wide, accommodating to different starting battery voltage environment
Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

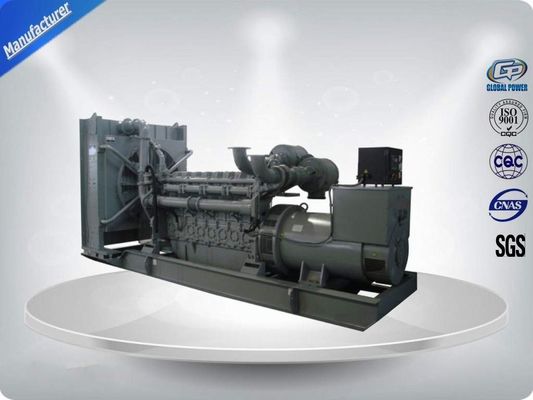

Our Picture :
Elecrical Govering Open Diesel Generator , 175 Kva Water Cooled Genset With Doosan Engine

Standard Supply Scope:

Advanced design and excellent processed: The engine with strong power, can adapt to any condition, such as high strength and heavy load.
Integrated design: The cylinder block and head are designed as multi-funtional parts so that the number of the partshas reduced 40% compare with competitive engines. The failure rate has markedly reduced.
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables

Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
