Name: Stamford Alternator Mitsubishi 520Kw Diesel Generator sets For Industrial Powered
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: GPM520
Availability: InStock

MOQ:	1set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 working days after receiving down-payment
Supply Capacity:	2,000sets/year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

OEM/ISO9001

Model Number

GPM520

Prime Power:

520KW

Rated Frequency:

50Hz

Engine Brand:

Mitsubishi

Alternator Brand:

Stamford

Rated Current:

938A

Open Type-Weight:

5030KG

Battery Capacity:

12V 100Ah

Continuous Running Time:

6hr.

Highlight:

12v diesel generator set

50hz diesel generator set

12v diesel electric generator

Product Description

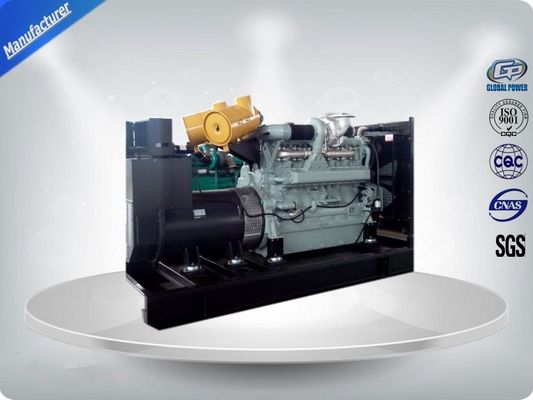

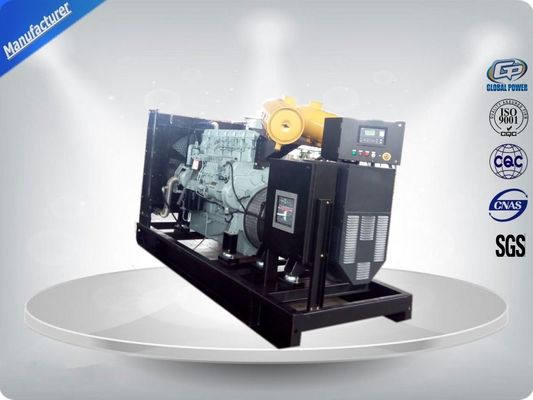

Mitsubishi 520Kw Diesel Generator sets For Industrial Powered By Stamford Alternator HCI544F

Technical Specifications:
Genset:

Prime Power (kw/kva)	520/650
Standby Power (kw/kva)	572/715
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	938
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah
Open Type-Dimension (LWH) (mm)	356014202049
Open Type-Weight (kg)	5030
Soundproof Type- Dimension (LWH) (mm)	/
Soundproof Type-Weight (kg)	/
Fuel Tank Capacity(L)	/
Continuous Running Time(hr.)	6

Engine:
Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

Model S6R2-PTA

Engine brand	MITSUBISHI
Output Power (kw)	635
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	/
Displacement (L)	29.96
Bore X Stroke (mm)	170*220
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	118
Fuel Consump. (g/kw·h)	205
Oil Capacity (L)	94

Alternator:
Main features:

Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2/3 pitch winding as standard, to avoid excessive neutral currents
Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
Easy access for installation and maintenance
IP23 as standard
Self-excited control system
Resist of corruption of oil and acid

Features and benefits

l Tightly structure, excellent design and craft

l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)

l Self-diagnostic capability simplifies troubleshooting

l LCD display shows system status and setup information

l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.

l Enclosed muffler for added quietness

l Service and maintenance accessible through easy-latch side service door

Model HCI544F

Alternator brand	Stamford
Rated Power (kw)	536
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%
