Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 640KW | Engine Brand: | Cummins |
|---|---|---|---|
| Rated Current: | 1155 | Alternator Brand: | Stamford |
| Battery Capacity: | 12V 100Ah | Fuel Tank Capacity: | 1200 |
| Displacement: | 37.8 | Color: | Customed |
| Weight: | 4450*1650*2400MM | ||
| Highlight: | Emergency Generator Set,power generating sets |
||

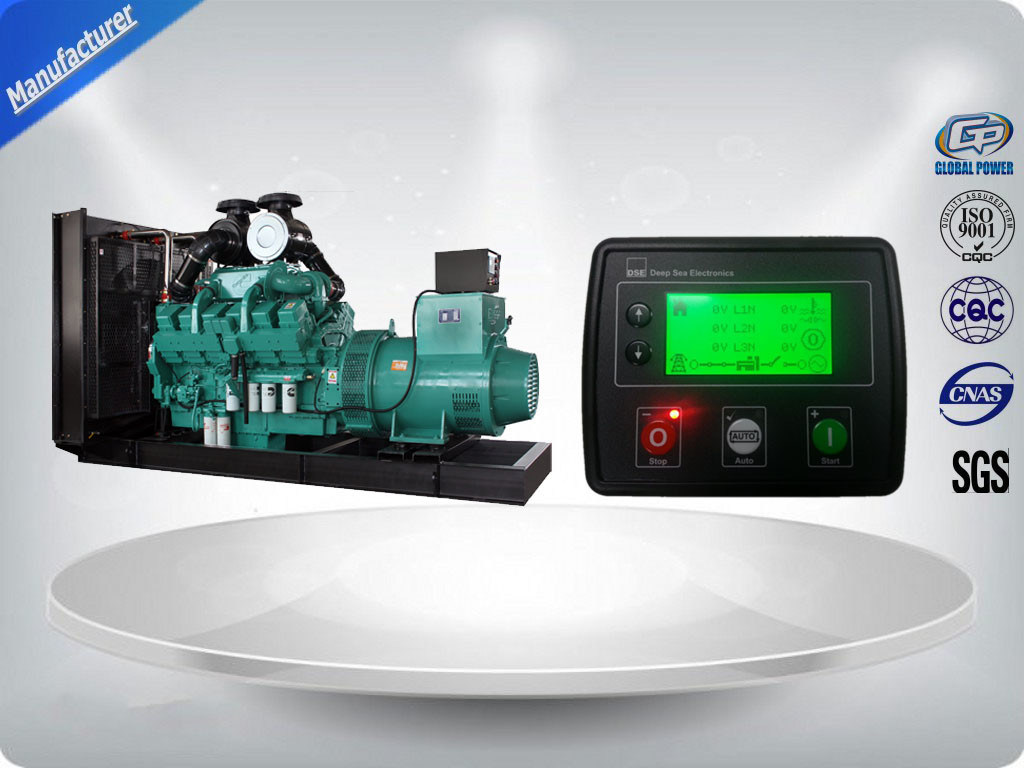

Good quality Cummins engine 640KW/800KVA with stamford HCI634G
Features and benefits
Technical Specifications:
Genset:
| Prime Power (kw/kva) | 640*800 |
| Standby Power (kw/kva) | 704*880 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 1155 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 4450*1650*2400 |
| Open Type-Weight (kg) | 6600 |
| Soundproof Type- Dimension (L*W*H) (mm) | 6000*2400*2800 |
| Soundproof Type-Weight (kg) | 17000 |
| Fuel Tank Capacity(L) | 1200 |
| Continuous Running Time(hr.) | 6 |
Engine:
Main features:
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
Model KTA38-G2B
| Engine brand | Cummins |
| Output Power (kw) | 711 |
| Cylinder No. & Config. | 12, in-line |
| Combustion System | direct injection |
| Compression Ratio | 14.5:1 |
| Displacement (L) | 37.8 |
| Bore X Stroke (mm) | 159*159 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 194 |
| Fuel Consump. (g/kw·h) | 199 |
| Oil Capacity (L) | 135 |
Alternator:
Main features:
Model HCI634G
| Alternator brand | Stamford |
| Rated Power (kw) | 640 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
l Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
l Security password-protected programming levels
l All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
l Power supply range is wide, accommodating to different starting battery voltage environment
l Built-in watch dog can never be dead halt, ensuring smooth program execution
l Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Our Service:
If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.when you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers satisfaction at the manufacturers cost.
Best service after shipment with email
Product Photo:before and after loading into container .
Standard Supply Scope:
Advanced design and excellent processed: The engine with strong power, can adapt to any condition, such as high strength and heavy load.
Integrated design: The cylinder block and head are designed as multi-funtional parts so that the number of the partshas reduced 40% compare with competitive engines. The failure rate has markedly reduced.
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
