Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 1400KW / 1750KVA | Rated Voltage: | 400V / 230V |
|---|---|---|---|
| Engine Brand: | MITSUBISHI | Engine Model: | S16R-PTA |
| Alternator Brand: | Standford | Alternator Model: | PI734E1 |
| Connection Type: | 3phase,4wires,”Y” Connection | ||
| Highlight: | industrial diesel generators,Industrial Genset |
||

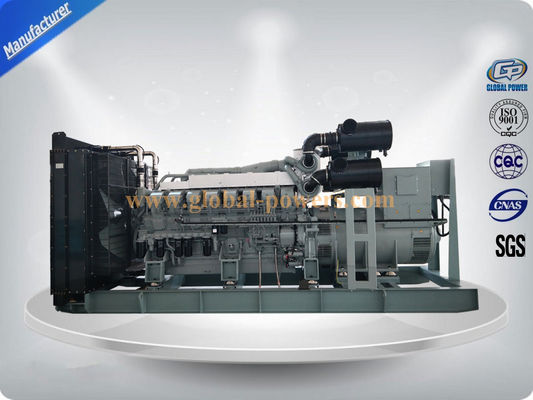

Japan Original Mitsubishi Engine 1400 KW / 1750 KVA Diesel Generator Strong Power
Main Features of Global Power Generator Set:
1. Be the result of technological research and development.
2. Detail oriented, with firmly connected parts and unique wire connection.
3. With safe and reliable system for greatly reducing low voltage, high water temperature, over speed, over / under voltage and over current.
4. Elegant appearance with compact structure.
5. Global Power Generators provide super power supply for global factories, hospitals, shopping malls, residence, field operation, marine, transportation, communications, etc.
|
Generator Data GP M1500 |
Prime Power (kw/kva) | 1400/1750 |  |
| Standby Power (kw/kva) | 1500/1875 | ||
| Rated Voltage (V) | 400/230 | ||
| Voltage Recovery Time | ≤1S | ||
| Rated Frequency (Hz) | 50 | ||
| Frequency Recovery Time | ≤5S | ||
| Wave Distortion | ≤5%, sine wave | ||
| Running Noise db(A)/7m(Silent type) | 75 | ||
| Battery capacity (V-Ah) | 200AH*4 | ||
| Open Type-Dimension (L*W*H) (mm) | 5360*2150*2450 | ||
| Open Type-Weight (kg) | 12300 |
|
Engine Data S16R-PTA |
Engine brand | MITSUBISHI | |
| Output Power (kw) | 1480 | ||
| Cylinder No. & Config. | 16, in “V” | ||
| Combustion System | direct injection | ||
| Displacement (L) | 65.37 | ||
| Bore X Stroke (mm) | 170*180 | ||
| Engine Speed (r/min) | 1500 | ||
| Speed Governing | Electronic | ||
| Starting System | 24V DC Electric | ||
| Filter System | Dry oil filter/Fuel filter/Oil filter | ||
| Cooling system | Water-cooled | ||
| Coolant capacity (L) | 350 | ||
| Fuel Consump. (g/kw·h) | 199.7 | ||
| Oil Capacity (L) | 230 |
|
Control System AMF25 |
1.manual / auto start and protection moudle 3.New integrated controllers in manual and remote start application. 4.Featuring full gen-set monitoring and protection. 5.Powerful graphic display, Icons, symbols and bar graphs 6. High functionality set new standards in gen-set control.
|
|
Company profile
Wuxi Global Power Technology CO., Ltd. have been engaged in research, development, manufacture and sales of energy-saving and environment-friendly generating sets, related parts and supporting equipment.
Our company has passed the quality management system certification of ISO9000 and environmental management system certification of ISO14000, fully certified, full compliance with industry standards at domestic and abroad.
Global power, as a strategic partner and designated OEM manufacturer of American Cummins (CUMMINS), UK Perkins (PERKINS), Volvo (VOLVO), UK Stanford (STAMFORD) in China has been keeping a steady, friendly and long-term cooperation with world leading companies.
