Product Details:
Payment & Shipping Terms:
|
| Engine: | MITSUBISHI | Rated Voltage: | 400 V / 230 V, 380 V / 220 V |
|---|---|---|---|
| Prime Power: | 600 KVA / 480 KW -- 1250 KVA / 1000 KW | Alternator: | Stamford |
| Control System: | HGM6110 | Frequency: | 50 HZ / 60 HZ |
| Tpye: | Open / Soundproof | ||
| Highlight: | industrial diesel generators,Industrial Genset |
||

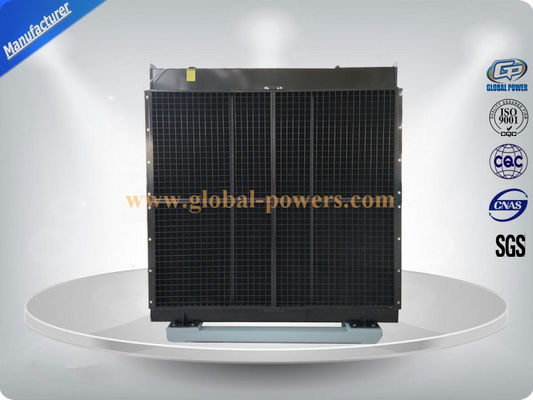

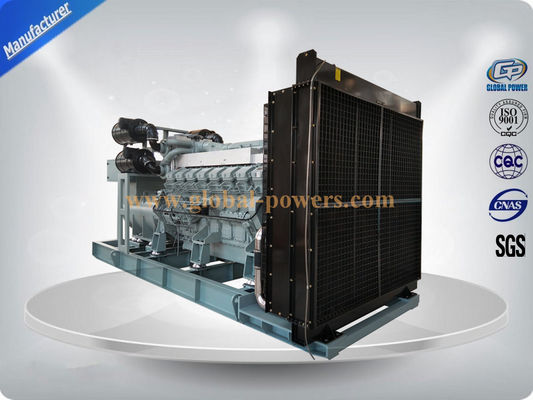

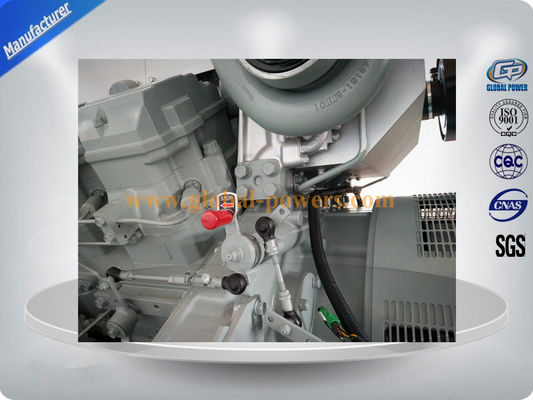

600 KVA -- 1250 KVA Original Japanese MITSUBISHI Engine Diesel Generator Set for Industrial Use Low Fuel Consumption
Place of Origin: China (Mainland)
Brand Name: Global Power
Model Number: Mitsubishi Series
Output Type: AC Three Phase
Speed: 1500RPM
Frequency: 50 HZ / 60HZ
Rated Power: 600 KVA / 480 KW -- 1250 KVA / 1000 KW
Rated Voltage: 230/400V 220/380V
Genset type: Open / Soundproof type
Engine brand: Mitsubishi
Engine model: S6R, S12 Series
Cooling method: Water cooled
Fuel: Diesel
Delivery Detail: 30 days
bottom fuel tank & battery
key/auto start control
MITSUBISHI GENERATOR SET SPECIFICATION
*Powered by Mitsubishi engines
*Radiator 40 °C / 50 °C max, fans are driven by belt, with safety guard
*12 / 24V DC start motor and storage battery
*Brushless, self-excited, IP22/23, insulation H alternator
*Absorber to reduce vibration

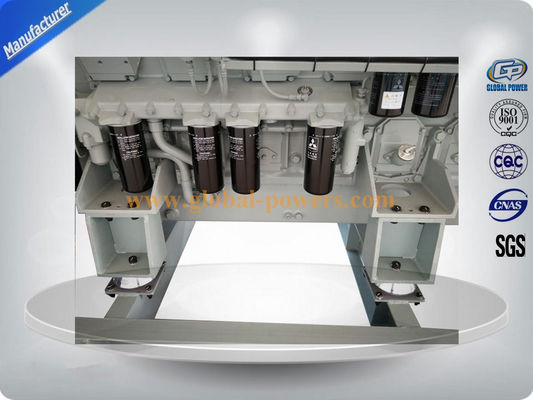

*Dry type air filter, fuel filter, oil filter
*Main line circuit breaker
*Control system: Key start control panel as standard, digital auto start or ATS system is optional
*6 hours operation base fuel tank
*Ripple flex exhaust pipe, exhaust siphon and flange etc.
*Genset type: open type or soundproof / silent type, or trailer type
* Maintenance and operation manual, quality certificate, etc.
*Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%
and all protection function(over speed stop, high water temperature, low oil pressure, battery
charging fail, emergency stop)
MAIN TECHNICAL DATA SHEET
| GENERATOR SET | ||||||||
| Genset Model | GPM480 | GPM520 | GPM600 | GPM612 | GPM728 | GPM840 | GPM1000 | |
|
Prime Power (KW / KVA) |
480 / 600 | 520 / 650 | 600 / 750 | 612 / 765 | 725 / 910 | 840 / 1050 | 1000 / 1250 | |
|
Standby Power (KW / KVA) |
528 / 666 | 572 / 715 | 660 / 825 | 673 / 842 | 800 / 1000 | 924 / 1155 | 1100 / 1375 | |
| Frequency & Voltage | 50 HZ / 400 / 230 | |||||||
| No. of Phase | 3 | |||||||
| Genset type | Open Type | |||||||
| Dimension (L*W*H, MM) |
3560*1420* 2049 |
3560*1420* 2049 |
4080*1715* 1985 |
4050*1600* 2120 |
4400*1756* 2440 |
4400*1756* 2440 |
4515*2200*2 510 |
|
| Weight (KG) | 4665 | 5030 | 5606 | 6640 | 8028 | 8335 | 10010 | |
| DIESEL ENGINE | ||||||||
| Engine Model | S6R-PTA | S6R2-PTA | S6R2-PTAA | S12A2-PTA | S12H-PTA | S12H-PTA | S12R-PTA | |
| Rated Output (KW) | 555 KW | 635 KW | 710 KW | 735 KW | 980KW | 980 KW | 1190 KW | |
| Rated Speed (RPM) | 1500 | |||||||
| Engine Type | In-line water cooled | |||||||
| No. of Cylinder | 6 | 6 | 6 | 12 | 12 | 12 | 12 | |
| Bore*Stroke (MM) | 170*180 | 170*220 | 170*220 | 170*220 | 150*175 | 150*175 | 170*180 | |
| Governor | Electronic | |||||||
| Starting Method | Electric Starting | |||||||
| Cooling Method | Forced water cooled | |||||||
| Fuel Consumption | 205g/kw.h | 205/kw.h | 208/kw.h | 211/kw.h | 206/kw.h | 206/kw.h | 197/kw.h | |
| ALTERNATOR | ||||||||
| Alternator Brand & Model | Stamford HCI544E | Stamford HCI544F | Stamford HCI634G | Stamford HCI634G | Stamford HCI634H | Stamford HCI634J | Stamford PI 734A | |
| Rated Power (KW) | 488 | 536 | 648 | 648 | 752 | 824 | 1008 | |
| Type | Brushless & Self-excited | |||||||
| No. of Phase | 3 | |||||||
| Voltage (V) | 230/400 | |||||||
| Frequency(HZ) | 50 | |||||||
| Power Factor | 0.8 | |||||||
| Insulation Grade | H | |||||||
| Protection Grade | IP23 | |||||||
Guarantee and after-sale service
*One year guarantee for whole machine from date of bill of loading or 1000 hours of running.
*Quality warranty is according to our standard conditions: 12 months from date of bill of lading or 1000 hours of running.
