Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | LOVOL | Engine Model: | 1003G |
|---|---|---|---|
| Altenrator Brand: | Global Power | Alternator Model: | GPI184FS |
| Rated Power: | 20 KW / 25 KVA | Rated Voltage: | 400V/230V |
| Dimension(L*W*H): | 1675*688*1100 MM(Open Type) | Weight: | 600 KG (Open Type) |
| Highlight: | Emergency Generator Set,power generating sets |
||

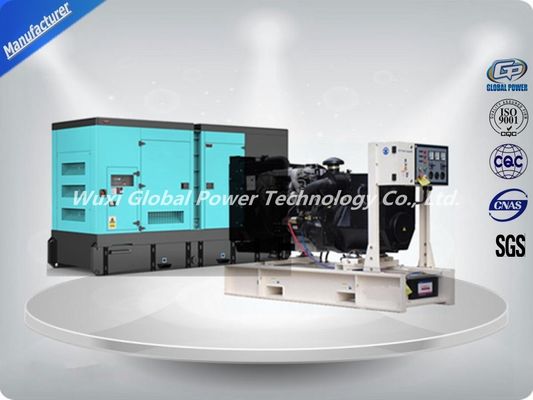

3 Phase 50 HZ 25 KVA / 20 KW Diesel Generator Set Lovol 1003G
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Features and benefits
1. Tightly structure, excellent design and craft
2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
3. Self-diagnostic capability simplifies troubleshooting

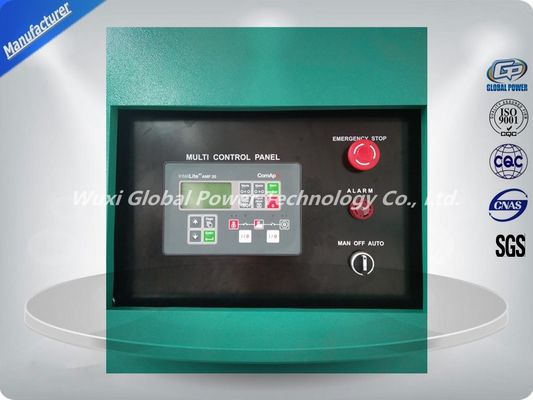

4. LCD display shows system status and setup information
5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
7. Enclosed muffler for added quietness
8. Service and maintenance accessible through easy-latch side service door
Generator data
Diesel Generator GPL20 (three phase)
| Prime Power (kw/kva) | 20/25 |
| Standby Power (kw/kva) | 22/28 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 36 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 1675*688*1100 |
| Open Type-Weight (kg) | 600 |
| Soundproof Type- Dimension (L*W*H) (mm) | 2150*890*1280 |
| Soundproof Type-Weight (kg) | / |
| Fuel Tank Capacity(L) | 120 |
| Continuous Running Time(hr.) | 8 |

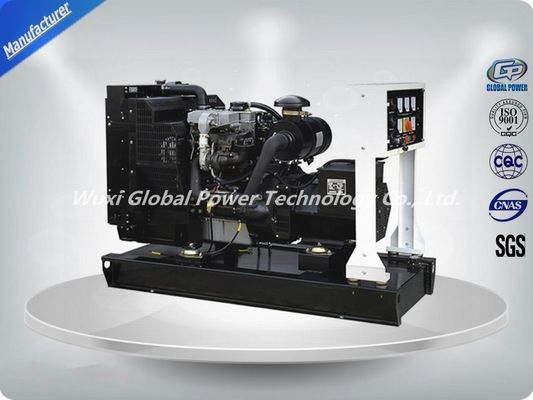

Engine
Main features:
1. Three-cylinder, water-cooled, in-line diesel engine
2. Efficient fuel system for max power output and durability
3. Large-capacity air cleaner
4. Cost effective, fuel efficient and reliable performance
5. Functional engine with compact structure
6. Excellent after-sales service and sufficient spare parts supplying
7. Easy installation and ready access for routine maintenance
Technical data
Model 1003G
| Engine brand | LOVOL |
| Output Power (kw) | 28 |
| Cylinder No. & Config. | 3, in-line |
| Combustion System | direct injection |
| Air Intake System | Naturally aspirated |
| Displacement (L) | 2.99 |
| Bore X Stroke (mm) | 100*127 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Mechanical |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Fuel Consump. (g/kw·h) | ≤208 |
| Oil Consump.(g/kw.h) | ≤2.5 |

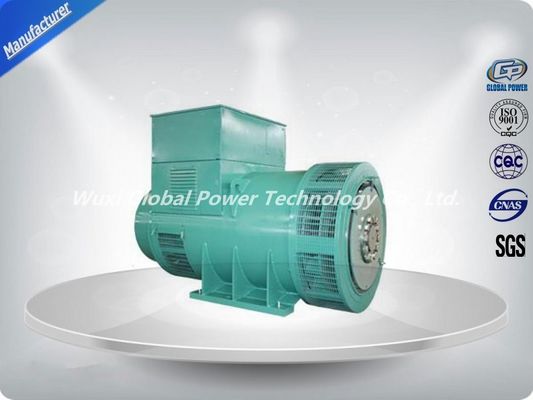

Alternator specifications
Alternator
Main features:
1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2. 2/3 pitch winding as standard, to avoid excessive neutral currents
3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
4. Easy access for installation and maintenance
5. IP23 as standard
6. Self-excited control system
7. Resist of corruption of oil and acid
Technical data
Model GPI 184FS
| Alternator brand | Global Power |
| Rated Power (kw) | 20 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Our experience
We are specialized in producing diesel generator for many years. We have exported to many countries and widely used in domestic.
Our service
1. Presale service: Select proper genset, installation recommendation and technical support,special equipping design
2. In-sale service: Application tech support, installation test installation recommendation
3.After-sale service: Tech training,outstanding maintenance,operator training
4. Lifetime service: Maintenance service,tech consultancy,components supply
