Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 36 KW / 45 KVA | Rated Voltage: | 400V / 230V |
|---|---|---|---|
| Engine Brand: | LOVOL, CUMMINS, PERKINS, ISUZU, Etc. | Alternator Brand: | Stanford, Mecc Alte, Faraday, Copy Stamford, Etc. |

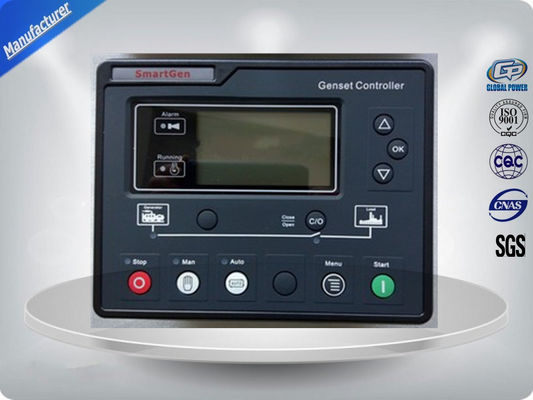

| Control System: | DeepSea, SmartGen, Etc. | ||
| Highlight: | Emergency Generator Set,power generating sets |
||

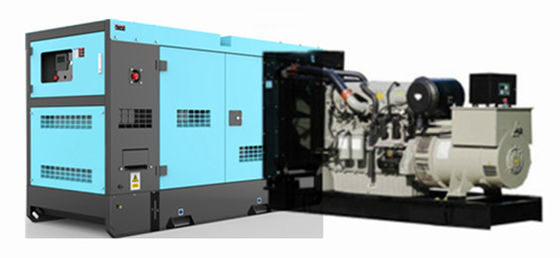

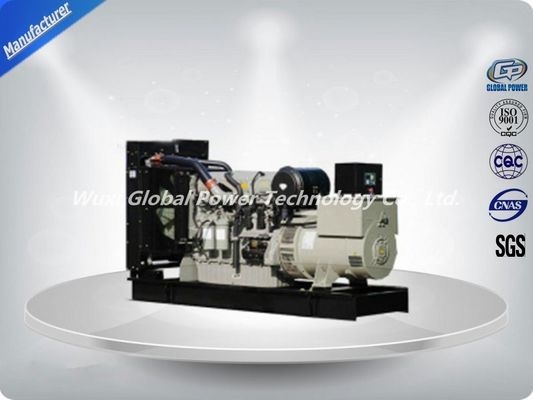

New Design Canopy 45 KVA Silent Diesel Generator Set LOVOL / PERKINS / CUMMINS / ISUZU / YANMA
Performance of Global Power new design canopy:
1. Fit for generator of 10 KVA - 200 KVA. Humanization design is convenient to operate. AVR controller is connected to the controller system. Drain valves for water and fuel can be stretched out of the canopy through a pipe line.
2. Big capacity of fuel tank partitioned into two parts, prevent fuel leakage at special ambient.
3. Multiple lifting ways with additional dragging holes for comfortable unloading.
4. Assembled type with pieces of canopy for comfortable maintenance.
5. About safety: The emergency stop button is available without opening the door. The fan has an additional protection net. All locks are designed for theftproof style.
45 KVA silent(soundproof) diesel generator
1,Model: GPL36
|
Power Output (Prime): 45KVA / 36KW Power Factor: COSΦ=0.8(Lagging) Max. Current Output: 72A Voltage Output: 230/400V
|
24V Electric Starter Weight: 1650*kg(Net) L*W*H(mm): 2150*890*1280 |
2,Diesel Engine:
|
Brand: Lovol Model: 1003TG No. of Cylinders: 3 Type of Cylinder: Vertical In-line Bore/Stroke: 100mm/127mm |
Rotation Speed: 1500RPM Fuel Consumption: 208g/kw.h Oil consumption rate: 2.5g/kw.h Air Intake System: Turbocharged |

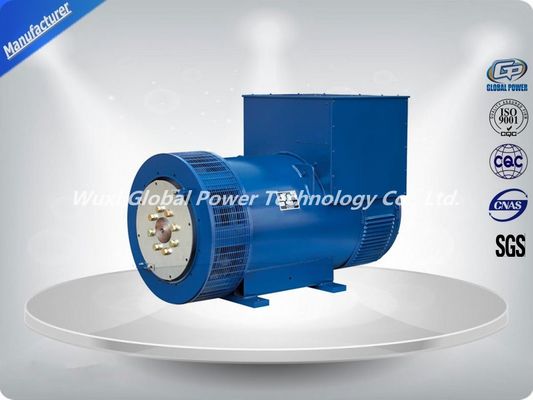

3,Alternator:
|
Brand: Stamford, Maccalte, Global Power Model: Global Power GPI224D Insulation Class: H Type of Excitation: Brushless self-excitation Protection Class: IP23 |
Vol. Control Method: AVR(Automatic Voltage Regulation) Voltage Regulation Rate: ±1% Vol. Harmonic Wave Distorted: <2%
|
FAQ
1.What's the power range of diesel generators?
Power range from 5kva~3000kva.
2.What's the delivery time?
Delivery within 30 days after deposit confirmed.
3.What's your payment term?
1.We accept 30% T/T as the deposit,the balance payment paid before delivery
2. L/C at sight
4.What's your warranty?
Warranty is one year or 1000 hours which comes first.
5.What's your MOQ?
MOQ is 1 set.
6.What’s the frequency of diesel generators?
50/60HZ
7.What’s the voltage of your diesel generator?
Voltage is 220/380V,230/400V,240/415V, just as per your request.
