Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 64KW / 80KVA | Rated Voltage: | 400V / 230V |
|---|---|---|---|
| Engine: | Perkins 1104A-44TG2 | Alternator: | Meccalte ECP32-3L4B |
| Engine Speed: | 1500 RPM | Control Panel: | HGM, DeepSea，ComAp, Etc. |
| Fuel Tank Capacity: | 180 L | Genset Type: | Open Type |
| Highlight: | Emergency Generator Set,power generating sets |
||

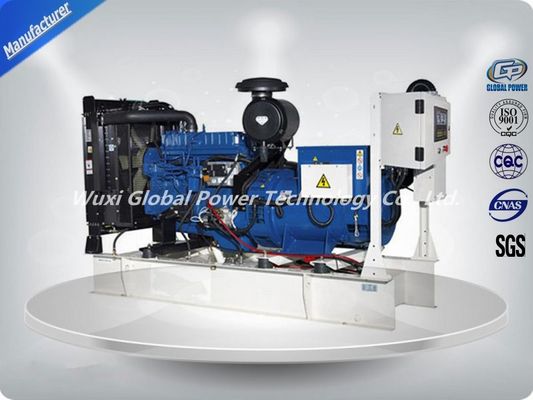

80 KVA 50 HZ 3 Phases Open Type Diesel Generator 400 V Low Fuel Consumption
Applications:
1. Banks and insurance
2. Data centers
3. Sales infrastructure
4. Agri-food and pharmaceutical industries
5. Health care: hospital, clinics, and retirement homes
6. Construction
| Generator Set Specification GPP64 | |
| Type | Open type |
| Prime power | 64 kw / 80 kva |
| Stanby power | 66 kw / 83 kva |
| Rated voltage | 400 V /230 V |
| Rated current | 108 A |
| Engine basic parameters | |

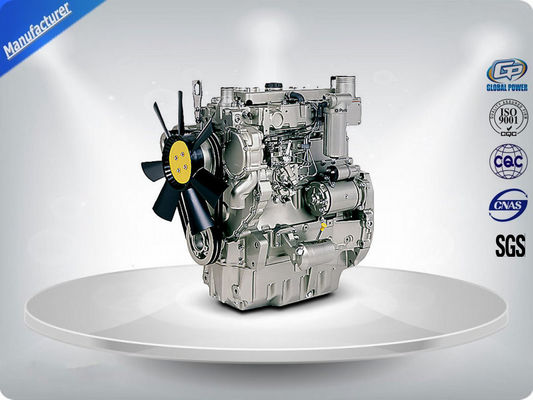

| Model | 1104A-44TG1 |
| Continuous power/speed | 72 kw / 1500rpm |
| Displacement: | 4.4 L |
| Rated Fuel Consumption at 100% load | 216 g/kw.h |
| Starting method | 12V electric start |
| Alternator basic parameters | |
| Brand | Maccalte |
| Type | Brushless, 100% copper wires stator & rotator |
| Copper wires vernished times | 3 times |
| Rated output power | 68 kw |
| Voltage Regulate method | Adjusted automatically by AVR |
| Protection class / Insulation Class | IP21 / H |
| Total offer list | |
|
1) Diesel engine ( corrugated tube, silencer, starter relay, alternator AVR, USA Baldwin filters, stainless steel heat-shield cover,high quality sensors, tool case, free spare parts, catalogue & manual) 2) Alterantor (air breaker, AVR, instruction manual) 3) Alternator cabinet( DELEX brand voltage/current/HZ meter, Schneider breaker, Omron relay) 4) Base steel frame ( industrial shock absorbers, forklift work hole) 5) Free-maintenance battery (include connecting cables, switch)(lead-acid) 6) Strong woodcase packing. |
|
Shipping:
Dispatch will be arranged within 30 days once your payment is verified. Package will be shipped from Shanghai Port, reaching most of the countries all over the world. Please be advised that international delivery highly depends on destination, local customs, post service and other factors.
Commitment:
