Product Details:
Payment & Shipping Terms:
|
| Type: | Silent Type | Colour: | White ( Can Be Customized) |
|---|---|---|---|
| Prime Power: | 200 KVA / 160 KW | Standby Power: | 220 KVA / 176 KW |
| Engine: | Perkins 1106A-70TAG4 | Alternator: | Meccalte ECO38-2S4A |
| Dimensin(L*W*H): | 3200*1300*2000 MM | Weight: | 2400 KG |
| Highlight: | Emergency Generator Set,power generating sets |
||

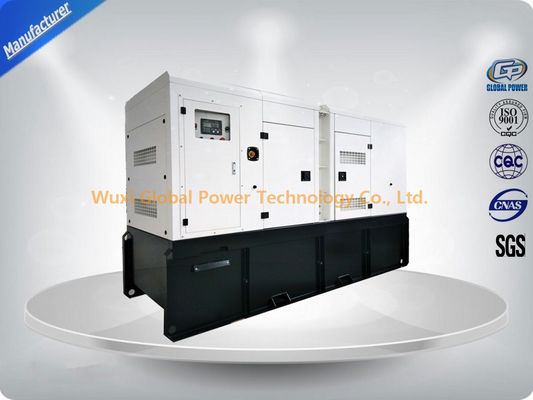

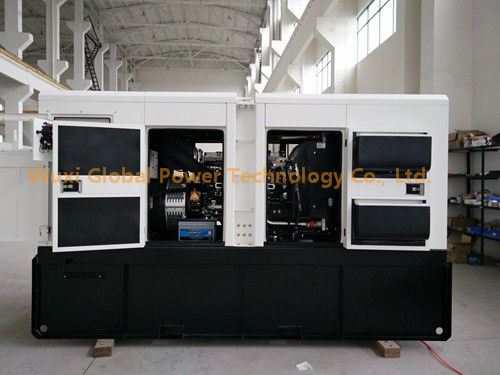

Perkins 200 KVA / 160 KW Diesel Generator Set 50 HZ Soundproof Type Quiet Running
Application:
1. Home
2. Factory
3. Hospital
4. Construction
5. Agriculture
6. Mining projects
……
Diesel Generator GPP160 (three phase)
| Prime Power (kw/kva) | 160/200 |
| Standby Power (kw/kva) | 176/220 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 288 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2377*780*1350 |
| Open Type-Weight (kg) | 1465 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3200*1300*2000 |
| Soundproof Type-Weight (kg) | 3865 |
| Fuel Tank Capacity(L) | 350 |
| Continuous Running Time(hr.) | 8 |
Engine technical data
Model 1106A-70TAG4
| Engine brand | Perkins |
| Output Power (kw) | 202 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16:1 |
| Displacement (L) | 7 |
| Bore X Stroke (mm) | 105*135 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 21 |
| Fuel Consump. (g/kw·h) | 204 |
| Oil Capacity (L) | 16.5 |
Alternator technical data
Model ECO38-2S4A
| Alternator brand | Meccalte |
| Rated Power (kw) | 160 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
