450kw / 563kva 50Hz Cummins Diesel Generator Set Open Type IP 23 , Water-cooled Diesel Generator

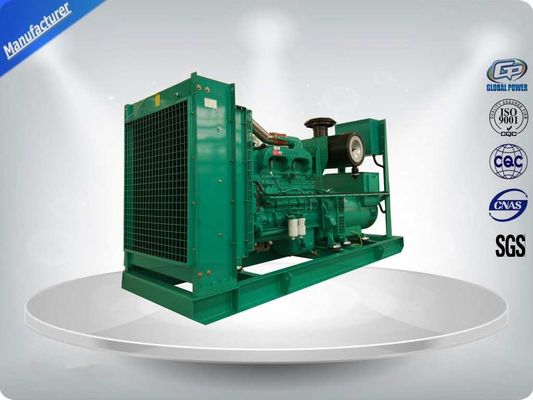

Large Image : 450kw / 563kva 50Hz Cummins Diesel Generator Set Open Type IP 23 , Water-cooled Diesel Generator

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	OEM/ISO9001
Model Number:	GP C450

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Plastic Foam or Plywood Case
Delivery Time:	25 working days after received down-payment
Payment Terms:	L/C, T/T
Supply Ability:	2000 sets/year

Contact Now

Detailed Product Description

Engine Model:	Cummins, KTAA19-G5	Alternator Brand:	Stamford, HCI544D
Frequency:	50Hz	Rated Voltage::	400/230
Prime Power (kw/kva):	450/563	Running Noise Db(A):	115(open Type)
Continuous Running Time(hr.):	8	Standby Power(kw/kva):	495/619
Control Module Brand:	SmartGen, Deepsea, ComAp	Battery Capacity (V-Ah):	12V 100Ah*2
Highlight:	Emergency Generator Set , power generating sets

Model: GPC450

Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
450kw / 563kva 50Hz Cummins Diesel Generator Set Open Type IP 23 , Water-cooled Diesel Generator
Features and benefits

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door

Generator data

Diesel Generator GPC450 (three phase)

Prime Power (kw/kva)	450/563
Standby Power (kw/kva)	495/619
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	811
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah*2
Open Type-Dimension (LWH) (mm)	357015502160
Open Type-Weight (kg)	4050
Soundproof Type- Dimension (LWH) (mm)	460018002530
Soundproof Type-Weight (kg)	5850
Fuel Tank Capacity(L)	800
Continuous Running Time(hr.)	8

Engine specifications

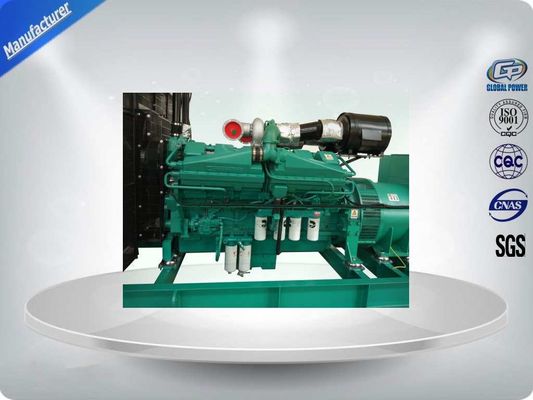

450kw / 563kva 50Hz Cummins Diesel Generator Set Open Type IP 23 , Water-cooled Diesel Generator
Engine
Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

Technical data
Model KTAA19-G5

Engine brand	Cummins
Output Power (kw)	470
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	13.5:1
Displacement (L)	19
Bore X Stroke (mm)	159*159
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	96
Fuel Consump. (g/kw·h)	204.4
Oil Capacity (L)	50

Alternator specifications

Alternator
Main features:

Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2/3 pitch winding as standard, to avoid excessive neutral currents
Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
Easy access for installation and maintenance
IP23 as standard
Self-excited control system
Resist of corruption of oil and acid

Technical data
Model HCI544D

Alternator brand	Stamford
Rated Power (kw)	440
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%

Control system

HGM6110 controller

Main features:

Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
Security password-protected programming levels
All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
Power supply range is wide, accommodating to different starting battery voltage environment
Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

Precision measure and display of: Protection:
