Product Details:
Payment & Shipping Terms:
|
| Engine Model: | Cummins, NTA855-G3 | Alternator Brand: | Stamford, HCI444ES |
|---|---|---|---|
| Frequency: | 60Hz | Rated Voltage:: | 440/270 |
| Prime Power (kw/kva): | 315/394 | Standby Power(kw/kva): | 350/438 |
| Rated Current (A): | 517 | Running Noise Db(A)/7m(Silent Type): | 75(silent Type) |
| Control Module Brand: | SmartGen, Deepsea, ComAp | Battery Capacity (V-Ah): | 12V 100Ah*2 |
| Voltage Recovery Time: | ≤1S | ||
| Highlight: | Emergency Generator Set,power generating sets |
||

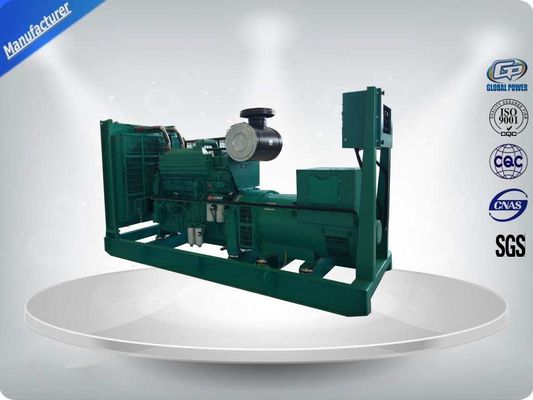

Model: GP1 C315
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Features and benefits
Generator data
Diesel Generator GP1 C315 (three phase)
| Prime Power (kw/kva) | 315/394 |
| Standby Power (kw/kva) | 350/438 |
| Rated Voltage (V) | 440/254 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 517 |
| Rated Frequency (Hz) | 60 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Open type) | 115 |
| Battery capacity (V-Ah) | 12V 100Ah*2 |
| Open Type-Dimension (L*W*H) (mm) | 3035*1000*1750 |
| Open Type-Weight (kg) | 3035 |
| Soundproof Type- Dimension (L*W*H) (mm) | 4100*1400*2100 |
| Soundproof Type-Weight (kg) | 4450 |
| Fuel Tank Capacity(L) | 600 |
| Continuous Running Time(hr.) | 8 |
Engine specifications
Engine
Main features:
Technical data
Model NTA855-G3
| Engine brand | Cummins |
| Output Power (kw) | 358 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 14.0:1 |
| Displacement (L) | 14 |
| Bore X Stroke (mm) | 140*152 |
| Engine Speed (r/min) | 1800 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant Capacity (L) | 49.2 |
| Fuel Consump. (g/kw·h) | 207 |
| Oil Capacity (L) | 36.7 |
Alternator specifications
Alternator
Main features:
Technical data
Model HCI444ES
| Alternator brand | Stamford |
| Rated Power (kw) | 315 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1800 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
HGM6110 controller
Main features:
