Product Details:
Payment & Shipping Terms:
|
| Engine Brand:: | MTU | Alternator:: | Stamford |
|---|---|---|---|
| Engine Model:: | 12V2000G65 | Rated Frequency (Hz): | 50/60 Hz |
| Number Of Phase: | 3 | Dimension L*W*H/mm: | 4050*1700*2150 |
| Weight/kg: | 6100 | Alternator: | LVI 634B |
| Highlight: | Emergency Generator Set,power generating sets |
||

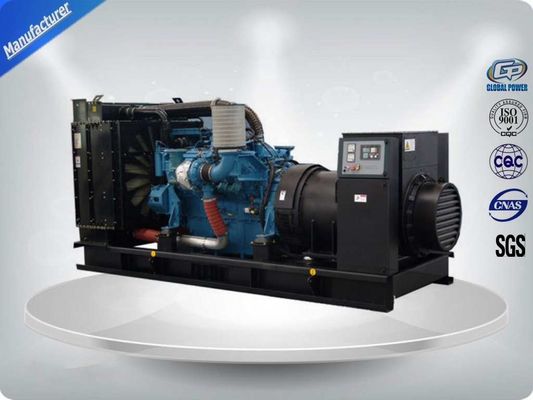

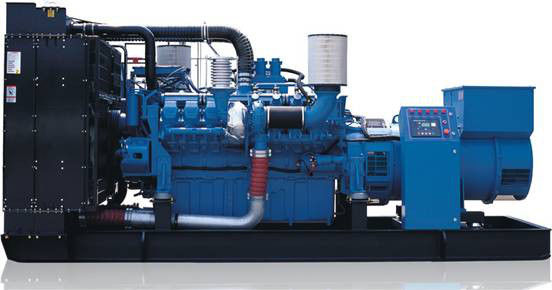

MTU Engine 12V2000G65 Heavy Duty Diesel Generator 24V DC Electric 50hz 600KW / 750KVA Prime
Product Description:
1. Power range: 250kva-3000kw
2. Application: construction machinery, home uses, Industry,aviation,vehicle,etc.
3 Advantage: MTU series has a high reputation with super quality, mainly on big power.
| Prime Power (kw/kva) | 600/750 |
| Standby Power (kw/kva) | 660/825 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 1083 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 115 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 4050*1700*2150 |
| Open Type-Weight (kg) | 6100 |
| Soundproof Type- Dimension (L*W*H) (mm) | / |
| Soundproof Type-Weight (kg) | / |
| Fuel Tank Capacity(L) | / |
| Continuous Running Time(hr.) | 6 |
Engine specifications
Engine
Main features:
Technical data
Model 12V2000G65
| Engine brand | MTU |
| Output Power (kw) | 695 |
| Cylinder No. & Config. | 12,in “V” |
| Combustion System | direct injection |
| Compression Ratio | 16:1 |
| Displacement (L) | 23.88 |
| Bore X Stroke (mm) | 130*150 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic / ADEC |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 164 |
| Fuel Consump. (g/kw·h) | 198 |
| Oil Capacity (L) | 77 |
Features and benefits
