Product Details:
Payment & Shipping Terms:
|
| Product Name: | Open Diesel Powered Generator | Output Type: | AC Three Phase |
|---|---|---|---|
| Rated Voltage:: | 400/230 | Prime Power (kw/kva): | 30/37.5 |
| Standby Power(kw/kva): | 33/41 | Engine Model: | K4102-D1 |
| Alternator Brand: | GPI 184G | Frequency: | 50Hz |
| Weight(kg): | 620 | Dimension Size(L*W*H/mm): | 1570*760*1270 |
| Package: | Plastic Foam Or Plywood Case | Control Module Brand: | HGM410 |
| Highlight: | Emergency Generator Set,power generating sets |
||

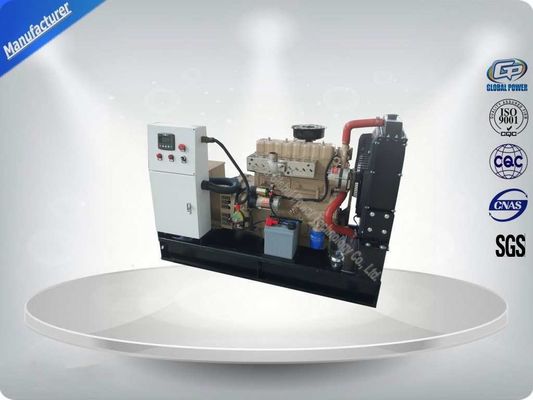

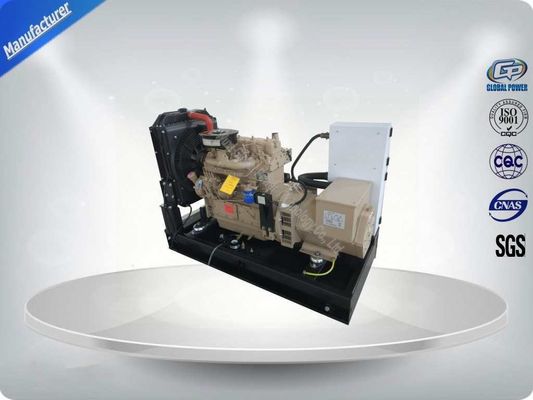

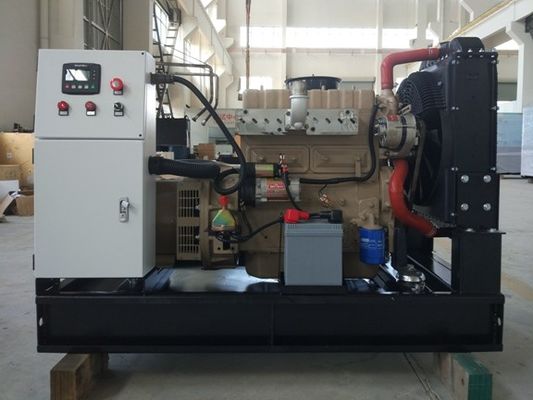

Model: SU30LHE
Open Diesel Generator data
Diesel Generator SU30LHE (three phase)
| Prime Power (kw/kva) | 30/37.5 |
| Standby Power (kw/kva) | 33/41 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 54 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 1570*760*1270 |
| Open Type-Weight (kg) | 620 |
| Base Fuel Tank | / |
| Continuous Running Time(hr.) | 8 |
Engine specifications
Engine
Main features:
Technical data
Model K4102D1
| Engine brand | Kofo |
| Output Power (kw) | 36 |
| Cylinder No. & Config. | 4, in-line |
| Combustion System | Eddy current |
| Aspiration type | Natural aspirated |
| Displacement (L) | 3.6 |
| Bore X Stroke (mm) | 100*115 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Mechanical / Electric |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 13 |
| Fuel Consump. (g/kw·h) | ≤258 |
| Oil Capacity (L) | 13 |
Alternator specifications
Alternator
Main features:
Technical data
Model GPI 184G
| Alternator brand | Global Power |
| Rated Power (kw) | 30 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
HGM410 controller
Main features:
