Product Details:
Payment & Shipping Terms:
|
| Air Delivery Rate: | 1.6m3/Min | Working Pressure: | 30bar |
|---|---|---|---|
| Type: | Piston Reciprocating Drive | Mode: | AC Electric Motor Lubrication |
| Style: | Oil Lubricated | Weight: | 600kg |
| Market: | Global | HS Code: | 8414809090 |
| Highlight: | portable air compressor,screw air compressor |
||
Model Specification:

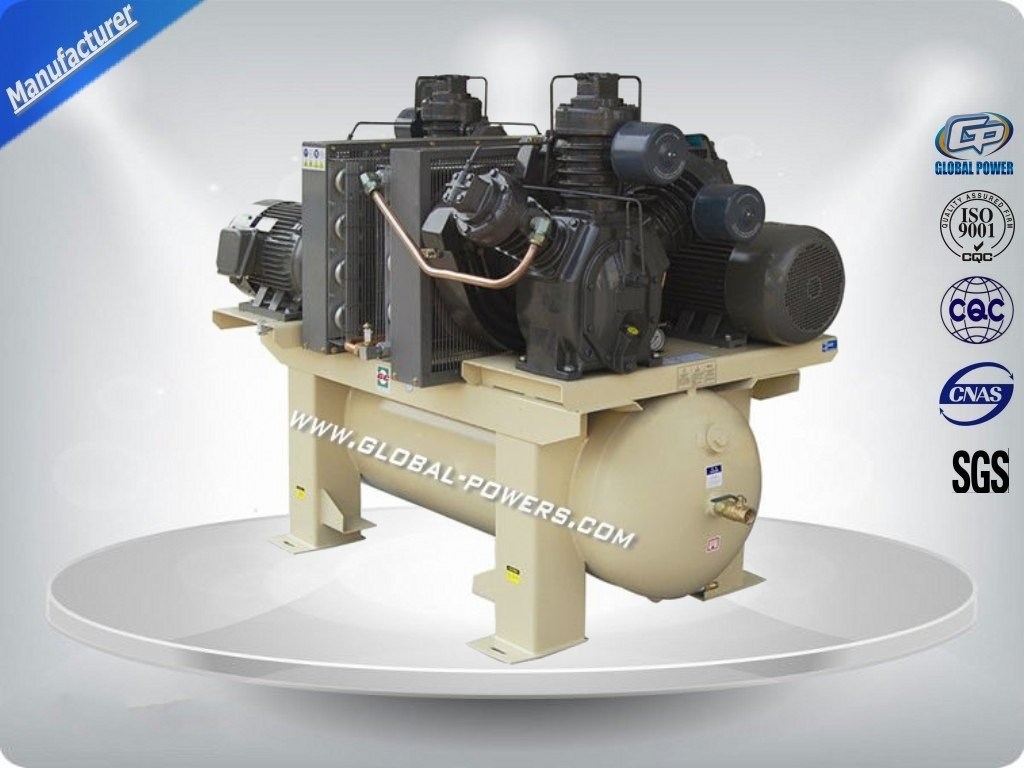

3Mpa piston air compressor
| Block type | PISTON | PISTON | PISTON | PISTON | PISTON | PISTON | PISTON |
| Volume(m3/min) | 0.6 | 0.8 | 1.0 | 1.2 | 1.6 | 2.0 | 3.0 |
| W.Pressure(Mpa) | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| RPM(r/min) | 830 | 800 | 780 | 780 | 830 | 830 | 780 |
| Lubrication | splash | splash | splash | splash | splash | splash | splash |
| drive | belt | belt | belt | belt | belt | belt | belt |
| cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling |
| Motor power(Kw) | 7.5 | 7.5 | 11 | 15 | 18.5 | 2X11 | 30 |
| Power source(v/Hz) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| noise(dB (A)) | ≤72 | ≤72 | ≤78 | ≤78 | ≤85 | ≤85 | ≤85 |
| Cylinders diameter(mm) | 2X¢95 ¢55 | 2X¢100 ¢55 | 2X¢120 ¢65 | 2X¢120 ¢65 | 2X¢135 ¢120 ¢65 | 4X¢120 2X¢55 | ¢210 ¢120 ¢100 |
| size(mm) | 1470(L) 530(W) 1020(H) | 1490(L) 600(W) 1160(H) | 1550(L) 730(W) 1280(H) | 1620(L) 730(W) 1280(H) | 1900(L) 850(W) 1600(H) | 1900(L) 900(W) 1400(H) | 1850(L) 1000(W) 1100(H) |
| weight(Kg) | 290 | 430 | 480 | 520 | 600 | 600 | 1150 |
1. The combined screw air compressor integrates the parts including screw compressor,air dryer,high efficiency air filter and air tank,making it convenient for the user to install,use and move.
2. After the air pass the integrated system,the quality of the air is made largely better to satisfy the process requirements of various companies.
3. Beautiful appearance,reliable performance and excellent economy make it one of our most important export series.
