Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Cummins | Engine Model: | 6CTA8.3-G1 |
|---|---|---|---|
| Output Power (kw): | 163 | Cooling System: | Water-cooled |
| Alternator: | Stamford / Meecalt / Copy Stamford | Fuel Tank Capacity(L): | 250 |
| Rated Voltage: | 400 / 230 V | Canopy Size (l*w*h/mm）: | 3300*1250*1750 |
| Canopy Weight(KG): | 3770 | Control Module: | DeepSea , Comap , Smartgen. |
| Highlight: | trailer mounted diesel generator,Trailer Genset |
||

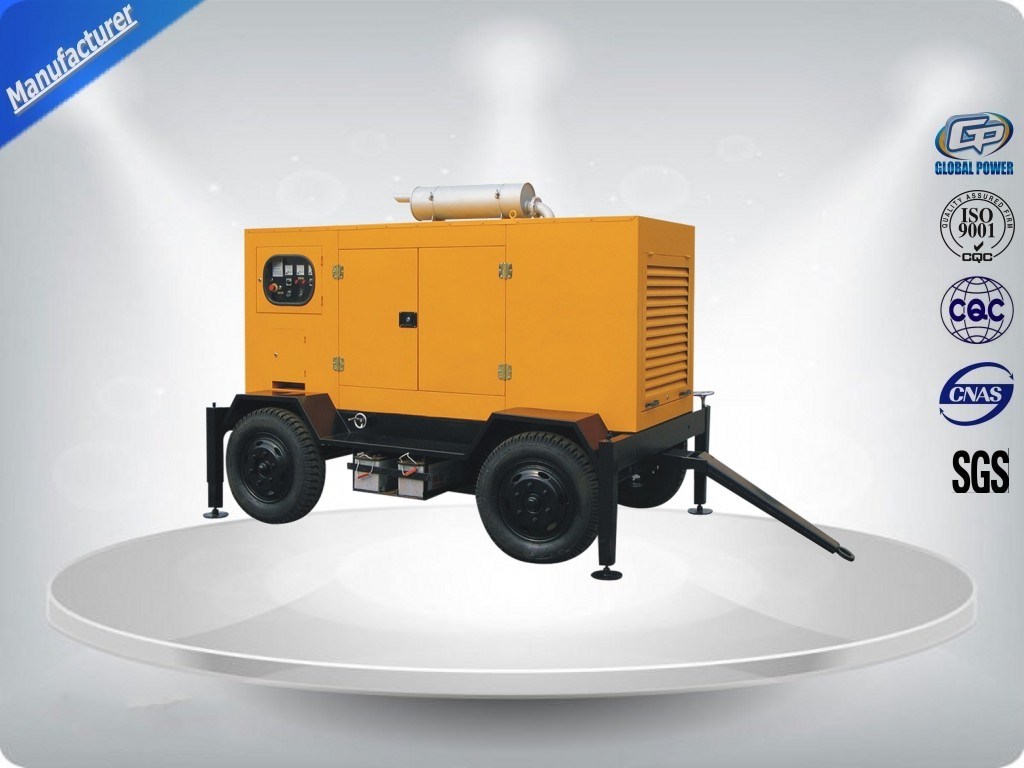

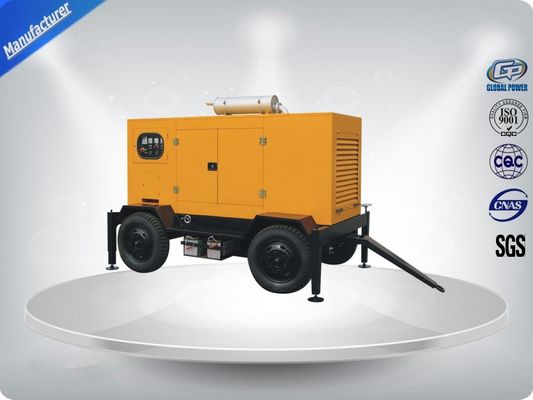

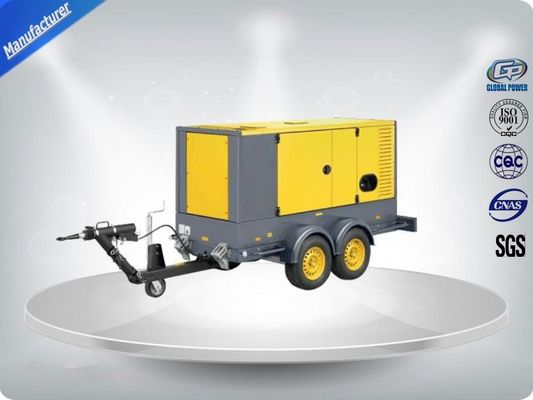

144kw / 180kva Diesel Trailer Generator Easy Moving Powered By Perkins Engine
GP Brand New Diesel Generator cooperates with good quality diesel engine such as Cummins/Perkins/Volvo ,etc .
We have factory for manufacturing our own alternator, also providing Stamford, Meccalte, Wattek for optional.
The controller with Deep sea, Smartgen, ComAp, etc.
Trailer Feature:
Technical Specifications :
Genset | Prime Power (kw/kva) | 144 / 180 | |
Standby Power (kw/kva) | 158 / 198 | ||
Voltage Recovery Time | ≤1S | ||
Rated Current (A) | 260 | ||
Rated Frequency (Hz) | 50 | ||
Frequency Recovery Time | ≤5S | ||
Running Noise db(A)/7m(Silent type) | 75 | ||
Battery capacity (V-Ah) | 24V 100Ah | ||
Fuel Tank Capacity(L) | 250 | ||
Engine | Engine brand | Cummins | |
Output Power (kw) | 163 | ||
Cylinder No. & Config. | 4, in-line | ||
Combustion System | direct injection | ||
Compression Ratio | 16.5:1 | ||
Displacement (L) | 8.3 | ||
Bore X Stroke (mm) | 114*135 | ||
Engine Speed (r/min) | 1500 | ||
Speed Governing | Mechanical | ||
Starting System | 24V DC Electric | ||
Filter System | Dry oil filter/Fuel filter/Oil filter | ||
Cooling system | Water-cooled | ||
Alternator | Alternator brand | Stamford, Mecc-alte,Faraday… | |
Excitation System | Brushless, self-exciting | ||
Voltage Regulation Mode | AVR | ||
Connection Type | 3phase,4wires,”Y” connection | ||
Pole No. | 4 | ||
Rotation Speed (r/min) | 1500 | ||
Temperature Rise (℃) | 125 | ||
Insulation class | H | ||
Voltage Regulation (0 load) | ≥95%～105% | ||
Protection Grade | IP23 | ||
Our Picture :
Control system
1. Main features:
2. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
3. Security password-protected programming levels
4. All parameters use digital modulation, with higher reliability and stability
5. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
6. Power supply range is wide, accommodating to different starting battery voltage environment
7. Built-in watch dog can never be dead halt, ensuring smooth program execution
Generator soundproof/Silent and canopy:
Our Service:
Warranty and Maintenance:
