320kw 400kva Black Start Diesel Generator 1500rpm 3200*1150*1900

China 320kw 400kva  Black Start Diesel Generator 1500rpm 3200*1150*1900 supplier

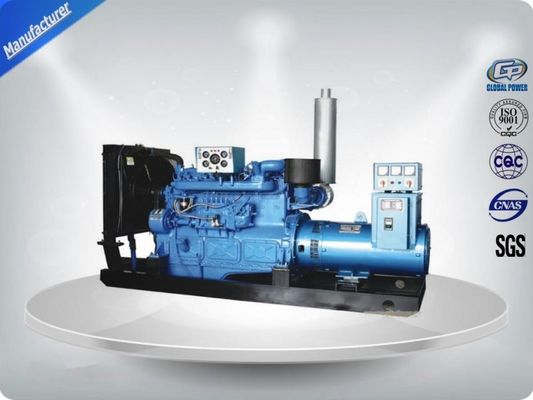

320kw 400kva  Black Start Diesel Generator 1500rpm 3200*1150*1900 supplier 320kw 400kva  Black Start Diesel Generator 1500rpm 3200*1150*1900 supplier

Large Image :  320kw 400kva Black Start Diesel Generator 1500rpm 3200*1150*1900

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Global Power
Certification: CE / ISO
Model Number: GP P320

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: plastic foam or plywood case packing
Delivery Time: 25 days after receiveing the down-payment
Supply Ability: 2000 sets / year
Detailed Product Description
Prime Power: 320kw 400kva Standby Power: 352kw 440kva
Engine Model: Perkins 2206C-E13TAG3 Cooling System: Water-cooled
Rated Frequency: 50 Hz Engine Speed: 1500 Rpm
Dimension: 3200*1150*1900 Weight: 2875 Kg
Highlight:

brushless synchronous generator

,

brushless alternator generator

320kw 400kva Perkins water-cooled low fuel diesel generator, 3 phase 1500rpm open type





Technical Specifications :



Prime Power (kw/kva) 320/400
Standby Power (kw/kva) 352/440
Rated Voltage (V) 400/230
Voltage Recovery Time ≤1S
Rated Current (A) 576
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 24V 100Ah
Open Type-Dimension (L*W*H) (mm) 3200*1150*1900
Open Type-Weight (kg) 2875
Soundproof Type- Dimension (L*W*H) (mm) 4250*1500*2300
Soundproof Type-Weight (kg) 7225
Fuel Tank Capacity(L) 800
Continuous Running Time(hr.) 8



  • Tightly structure, excellent design and craft
  • Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
  • Self-diagnostic capability simplifies troubleshooting
  • LCD display shows system status and setup information
  • Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  • Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  • Enclosed muffler for added quietness
  • Service and maintenance accessible through easy-latch side service door.


 Perkins Engine:



Model                                 2206C-E13TAG3

Engine brand Perkins
Output Power (kw) 392
Cylinder No. & Config. 6, in-line
Combustion System direct injection
Compression Ratio 16.3:1
Displacement (L) 12.5
Bore X Stroke (mm) 130*157
Engine Speed (r/min) 1500
Speed Governing Electronic
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant capacity (L) 51.4
Fuel Consump. (g/kw·h) 210
Oil Capacity (L) 40



feature:

  • Six-cylinder, water-cooled, in-line diesel engine
  • Efficient fuel system for max power output and durability
  • Large-capacity air cleaner
  • Cost effective, fuel efficient and reliable performance
  • Functional engine with compact structure
  • Excellent after-sales service and sufficient spare parts supplying
  • Easy installation and ready access for routine maintenance



Alternator:


Model                                     ECO40-1S/4

Rated Power (kw) 320
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%~105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF<50
Harmonic Coefficient THF<2%



feature:

  • Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
  • 2/3 pitch winding as standard, to avoid excessive neutral currents
  • Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
  • Easy access for installation and maintenance
  • IP23 as standard
  • Self-excited control system
  • Resist of corruption of oil and acid




Control system :



DSE4620 controller

320kw 400kva  Black Start Diesel Generator 1500rpm 3200*1150*1900



Main features:

  • Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
  • Security password-protected programming levels
  • All parameters use digital modulation, with higher reliability and stability
  • Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
  • Power supply range is wide, accommodating to different starting battery voltage environment
  • Built-in watch dog can never be dead halt, ensuring smooth program execution
  • Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

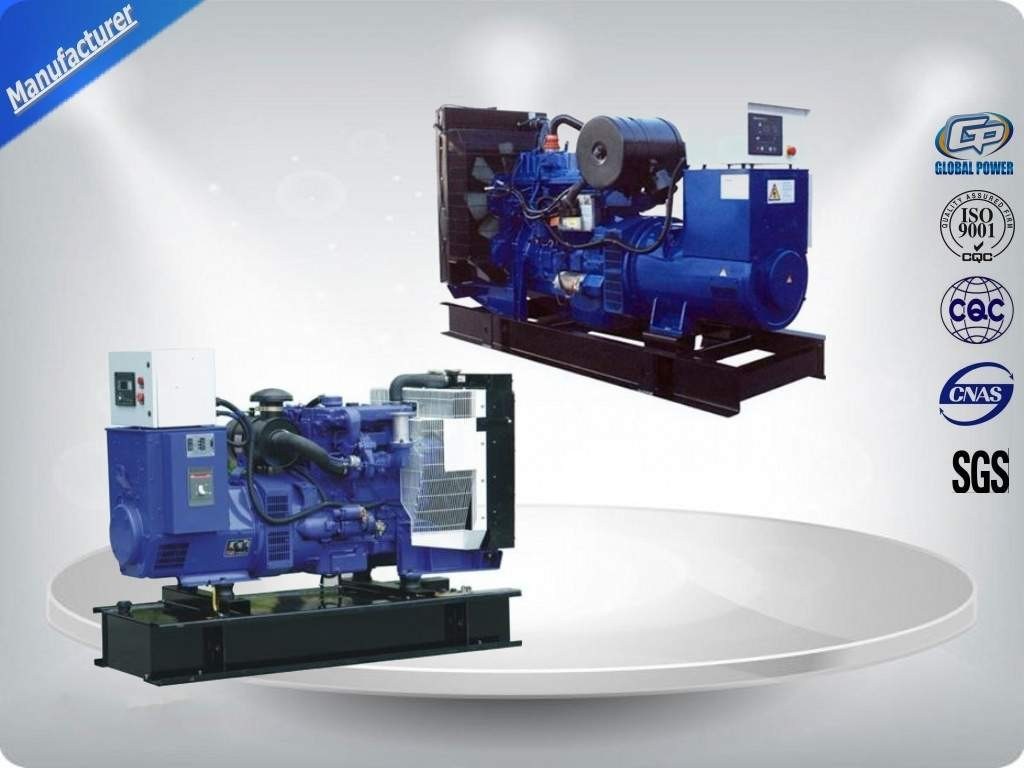

Our Picture :
320kw 400kva  Black Start Diesel Generator 1500rpm 3200*1150*1900

320kw 400kva  Black Start Diesel Generator 1500rpm 3200*1150*1900




Standard Supply Scope:

  • Advanced design and excellent processed: The engine with strong power, can adapt to any condition, such as high strength and heavy load.
  • Integrated design: The cylinder block and head are designed as multi-funtional parts so that the number of the partshas reduced 40% compare with competitive engines. The failure rate has markedly reduced.
  • Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
  • Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
  • Documents included: manual book, product qualified card



Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.



Inspection and Test:

  1. Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
  2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
  3. The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
  4. Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers satisfaction at the manufacturers cost.
  5. 5. The engine and generator shall be tested individually in accordance with relevant standards specified above.
  6. The completed and individually tested engine and generator shall be assembled onto the base plate with all auxiliaries, instruments and controls for a complete test of the generator set.



Guarantee for Our Generators:

  • Guarantee Period: One year or 1000hours whichever comes first.
  • During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  • Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
  • 24 hours service hot-line is available for customers.

Invitation to visit our factory:

  1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
  2. Our factory locates in Wuxi City, just 30 minutes away from Shanghai.
  3. When you come to Shanghai or Wuxi, we can send cars to pick you up and take you to our factory.
  4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
