Product Details:
Payment & Shipping Terms:
|
| Rated Power: | 1368kw 1710kva | Standby Power: | 1509kw 1886kva |
|---|---|---|---|
| Frequency: | 50/60 Hz | Excited Way: | Self Excited |
| Engine Cylinder: | 12 | Cooling Method: | By Radiator |
| Regulation: | AVR | Spped: | 1500/1800 Rpm |
| Highlight: | brushless alternator generator,engine generator set |
||

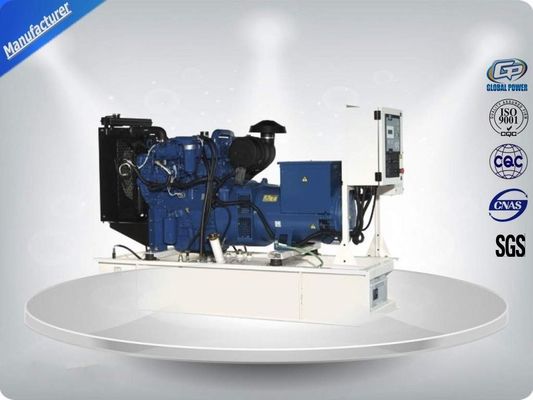

Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel
Test before shippment:
Guarantee for Our Generators:
Technical Specifications :
Genset:
| Prime Power (kw/kva) | 1368/1710 |
| Standby Power (kw/kva) | 1509/1886 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 2462 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 24V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 4800*1700*2550 |
| Open Type-Weight (kg) | 9500 |
| Soundproof Type- Dimension (L*W*H) (mm) | / |
| Soundproof Type-Weight (kg) | / |
| Fuel Tank Capacity(L) | / |
| Continuous Running Time(hr.) | 6 |
Engine:
Model 4012-46TAG3A
| Engine brand | Perkins |
| Output Power (kw) | 1500 |
| Cylinder No. & Config. | 12 in “V” |
| Combustion System | direct injection |
| Compression Ratio | 13.6:1 |
| Displacement (L) | 45.842 |
| Bore X Stroke (mm) | 160*190 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 207(Temp.) / 210(Trop.) |
| Fuel Consump. (g/kw·h) | 208 |
| Oil Capacity (L) | 177 |
Alternator:
Model PI734D
| Alternator brand | Stamford |
| Rated Power (kw) | 1320 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control System:
Our Picture :
Standard Supply Scope:
Select Supply Scope:
Genset Construction :
