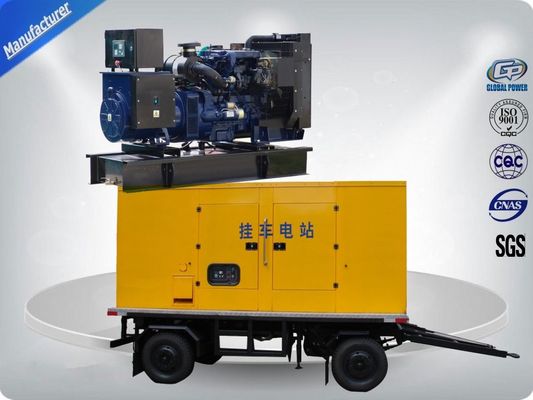

80kw 100kva Trailer Mounted Silent Type Generator With Cummins Diesel Engine Low Fuel Consumption

: Large Image : 80kw 100kva Trailer Mounted Silent Type Generator With Cummins Diesel Engine Low Fuel Consumption

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	CE / ISO
Model Number:	GP C80

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	plastic foam or plywood case packing
Delivery Time:	25 days after receiveing the down-payment
Supply Ability:	2000 sets/year

Contact Now

Detailed Product Description

Engine Brand:	Cummins Diesel Engine	Engine Model:	6BT5.9-G2/86
Cooling System:	Water-cooled	Standby Power:	88KW / 11KVA
Alternator Brands:	Stamford / Meecalt / Copy Stamford	Rated Current (A):	144 A
Output Type:	AC Three Phase	Speed:	1500/1800 Rpm
Frequency:	50 Hz / 60hz
Highlight:	trailer mounted diesel generator , mobile generators

Genset Supply Scope

♦ Diesel engine,alternator,radiator,auto control panel

♦ Base steel frame,base fuel tank,Flexble pipes,Flange,Exhaust silencer

♦ Battery,battery charger,battery wires,internal cables,circuit breaker

♦ Manual books of engine,alternator,genset control panel,wires diagram

Optional

♦ Silent trailer/portable trailer

♦ Soundproof/rainproof enlosure

♦ ATS

♦ Remote system

Free Services

1.Loading Capacity analysis

2.Technology Consultations

3.Lay out of Installation

4.Testing and Debuging

5.Traning of Operation

6.Low cost spare parts

7.1 year or 1000 hours warranty time,which comes first

Product Display

Product Description

Genset	1800RPM 60HZ 400/230V
POWER	24KW	36KW	60KW	70KW	100KW	120KW
Engine	Cummins
Model	4B3.9-G2	4BT3.9-G2	4BTA3.9-G2	4BTA3.9-G1	6BT5.9-G2	6BTA5.9-G2
Power	33KW	44KW	66KW	88KW	110KW	132KW
Cylinder No.	4	4	4	4	6	6
Bore*Stroke	102*120mm	102*120	102*120	102*120	102*120	102*120
Displacement	3.9L	3.9L	3.9L	3.9L	5.9L	5.9L
Lubricating Capacity	11L	11L	11L	11L	16L	20L
Fuel Consumption	208g/kw.h	208g/kw.h	210g/kw.h	210g/kw.h	210g/kw.h	210g/kw.h
Cooled system	Water cooled
Aspiration	Naturally	Turboc
Alternator
Brand	Hengsheng / Stamford / Marathon
Excitation type	Brushless Excitation
Phase	AC 3 phase
Regulation	AVR self-regulated, voltage regulation rate ≤± 1%
Insulation degree	H degree
Grading protection	IP22
Control Panel
Brand	Deepsea /Smartgen/ComAp/Hengsheng
Based Function	1.Start/stop controller 2.3phase ac current,voltage shows 3.frequency table/water thermometer/time table/battery voltshows
Based Function	4.Alarm function:Overspeed,high watertemperature,low oil pressure,failing charging 5.Protection function
Dimension(lwh)mm	16507201200	17007201200	1800750 1200	1800750 1200	2250800 1300	23008001300
Weight(kg)	700	710	920	920	1200	1300

Alternator Feature
· Brush-less, 4 poles, rotation magnet.
· IP21-23(NEMA1) enclosure is standard for all industrial alternators.
· The insulation system is Class H
· Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
· Wide range of flange adaptors and single bearing disc coupling.
· Standard 2/3 pitch windings avoid excessive neutral currents
· AVR auto voltage regulator, auto exciter, auto adjustment

Standard Accessory

Common steel base frame, Circuit breaker, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires, Operation manual and document.

Optional Accessory
Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, Soundproof Canopy and Moving Trailer.

ATS SYSTEM
For emergency power usage in building, Auto transfer switch (ATS) is essential. ATS can automatic transfer load from Mains power supplying to Emergency power. In normal, when the Main power supplying failure or voltage drop below 80% of normal voltage, ATS will auto start Emergency generator set after a preset time of 0-10 sec (adjustable according to the users). Once generator reach at rated speed, the ATS will transfer the load to emergency generator sets automatically.
Trailer Feature:

Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
Widely used in construction sites, road and railway construction sites and temporary sites electricity.

GP Brand New Diesel Generator cooperates with good quality diesel engine such as Cummins/Perkins/Volvo ,etc .
We have factory for manufacturing our own alternator, also providing Stamford, Meccalte, Wattek for optional.
The controller with Deep sea, Smartgen, ComAp, etc.

Our Picture:
