Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 45KW | Rated Frequency: | 60Hz |
|---|---|---|---|
| Engine Brand: | ISUZU | Alternator Brand: | Stamford |
| Speed Governing: | Mechanica | Displacement: | 2.77L |
| Bore / Stroke: | 93 Mm / 102 Mm | Cycle: | 4 Strok |
| Highlight: | marine diesel genset,power generating sets |
||

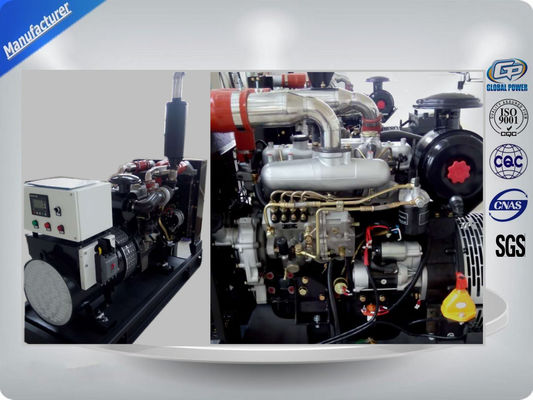

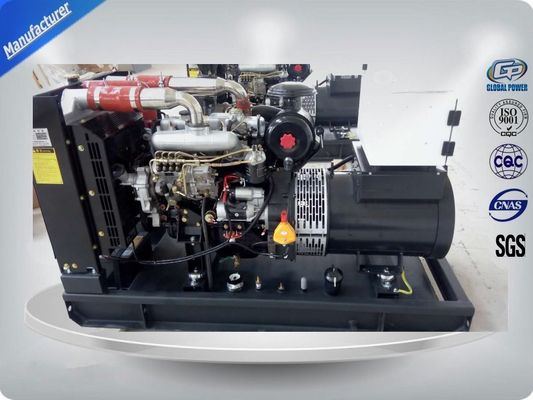

56kVA Open Type ISUZU Diesel Generator With Stamford Alternator UCI224E
Technical Specifications:
Genset:
| Prime Power (kw/kva) | 45/56 |
| Standby Power (kw/kva) | 50/62 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 148 |
| Rated Frequency (Hz) | 60 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 1680*660*1000 |
| Open Type-Weight (kg) | 425 |
| Soundproof Type- Dimension (L*W*H) (mm) | / |
| Soundproof Type-Weight (kg) | / |
| Fuel Tank Capacity(L) | / |
| Continuous Running Time(hr.) | 6 |
--------Diesel Generator Main Specification----------------
| 1. Specification of genset | ||||||||
| Gensets model | 550GF | |||||||
| Prime power(KVA) | 687.5 | |||||||
| Standby power(KVA) | 750 | |||||||
| Rated voltage(V) | 400/230 | |||||||
| Rated current(A) | 992.3 | |||||||
| Rated frequency(Hz) | 50 | |||||||
| Rated Speed | 1500rpm | |||||||
| Power Factor | 0.8(lagging) | |||||||
| Dimensions(mm) (L×W×H) | 3800x1660x2160 | open type with base fuel tank | ||||||
| Genset Weight(kg) | 4300 | |||||||
| 2. Specification of diesel engine | ||||||||
| Engine brand | Wudong | |||||||
| Engine model | WD287TAD58 | |||||||
| Number of Cylinders | 12 | |||||||
| Cylinder arrangement | in "V" | |||||||
| Cycle | Four stroke | |||||||
| Air Intake System | Turbocharged | |||||||
| Fuel System | Direct Injection | |||||||
| Bore×Stroke (mm×mm) | 138 x 160 | |||||||
| Displacement (Liter) | 28.7 | |||||||
| Speed Governor | Electronic | |||||||
| Cooling System | Forced Water Cooling Cycle | |||||||
| Fuel Consumption at 100% Load (g/kwh) | 217 | |||||||
| Oil Consumption at 100% Load (g/kwh) | 1.5 | |||||||
| Starting Method | DC24V electrical starting | |||||||
| 3. Specification of alternator | ||||||||
| Alternator brand | Chinese Stamford | |||||||
| Alternator model | XN-500KW | |||||||
| Number of Phase | 3 | |||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||
| Number of Bearing | 1 | |||||||
| Protection Grade | IP21 | |||||||
| Altitude | ≤1000m | |||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||
| Insulation Class | H | |||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||
| THF | ≤2% | |||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||
| Transient State Voltage | ≤-15%~+20% | |||||||
Engine:
Main features:
Model S6R2-PTA
| Engine brand | ISUZU |
| Output Power (kw) | 50 |
| Cylinder No. & Config. | 4, in-line |
| Combustion System | direct injection |
| Compression Ratio | 17.4:1 |
| Displacement (L) | 2.77 |
| Bore X Stroke (mm) | 93*102 |
| Engine Speed (r/min) | 1800 |
| Speed Governing |
Mechanica |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 24 |
| Fuel Consump. (g/kw·h) |
202 |
| Oil Capacity (L) | 11 |
Model HCI544F
| Alternator brand | Stamford |
| Rated Power (kw) | 48 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1800 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
Control system
l Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
l Security password-protected programming levels
l All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
l Power supply range is wide, accommodating to different starting battery voltage environment
l Built-in watch dog can never be dead halt, ensuring smooth program execution
l Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Standard Supply Scope:
Similar products:
Cummins diesel generator set,Deutz diesel generator, Doosan generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
