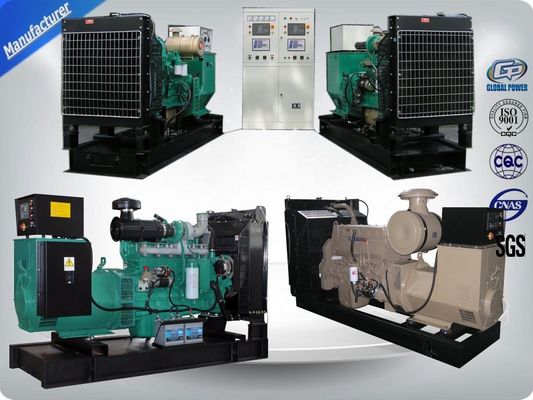

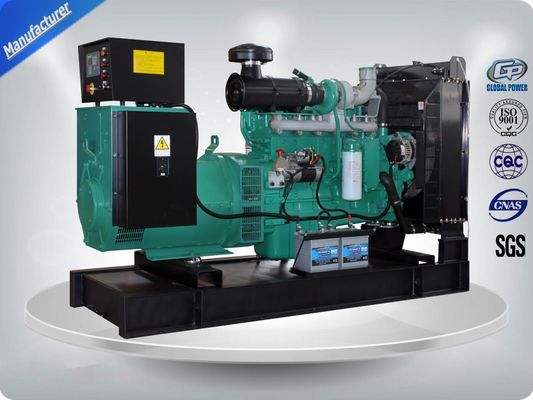

300KV / 375 KVA Open Diesel Generator , Performance Cummins Engine Generator Set

300KV / 375 KVA Open / Silent Cummins Engine Diesel Generator Set

Technical Specifications:
Genset:

1) Enclosed muffler for added quietness

2) Service and maintenance accessible through easy-latch side service door

3) Tightly structure, excellent design and craft

4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

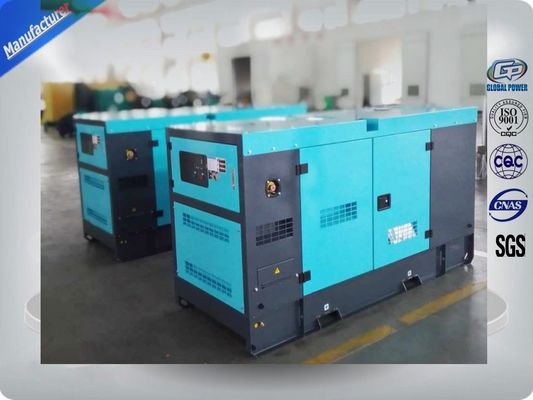

5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.

6) Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)

7) Self-diagnostic capability simplifies troubleshooting

8) LCD display shows system status and setup information



Engine:
Main features:
1) Six-cylinder, water-cooled, in-line diesel engine
2) Efficient fuel system for max power output and durability
3) Large-capacity air cleaner
4) Cost effective, fuel efficient and reliable performance
5) Functional engine with compact structure
6) Excellent after-sales service and sufficient spare parts supplying
7) Easy installation and ready access for routine maintenance
Model 6ZTAA13-G3


Alternator:
Main features:

• Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
• 2/3 pitch winding as standard, to avoid excessive neutral currents
• Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
• Easy access for installation and maintenance
• IP23 as standard
• Self-excited control system
• Resist of corruption of oil and acid

Model GPI-4FS/304

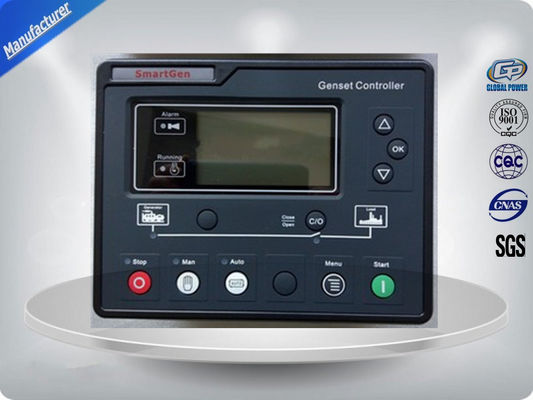

Control system

1)Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation

2) Security password-protected programming levels

3) All parameters use digital modulation, with higher reliability and stability

    Built-in speed/frequency detecting units can accurately judge the states such as crank success and over       speed

4) Power supply range is wide, accommodating to different starting battery voltage environment

5)Built-in watch dog can never be dead halt, ensuring smooth program execution

6)Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

1. Advanced design and excellent processed: The engine with strong power, can adapt to any condition, such as high strength and heavy load.
2. Integrated design: The cylinder block and head are designed as multi-funtional parts so that the number of the partshas reduced 40% compare with competitive engines. The failure rate has markedly reduced.
3. Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
4. Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
