Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 400 KW / 500 KVA | Stanby PowerRated Voltage: | 440 KW / 550 KVA400V / 230V |
|---|---|---|---|
| Engine: | PERKINS 2506C-E15TAG2 | Alternator: | Stamford HCI544E |
| Frequency: | 50 HZ | Voltage: | 440 V / 230 V |
| Phase: | 3 | Contrl Panel: | HGM6110 |
| Highlight: | industrial diesel generators,Industrial Genset |
||

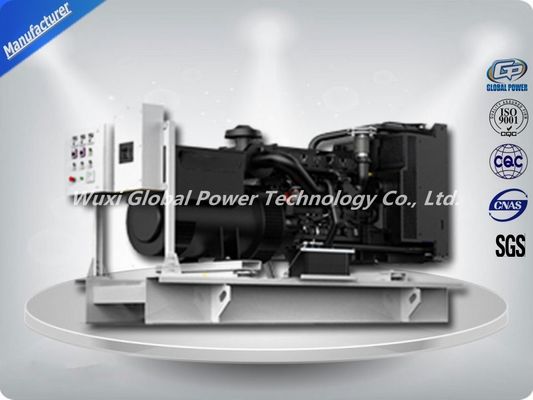

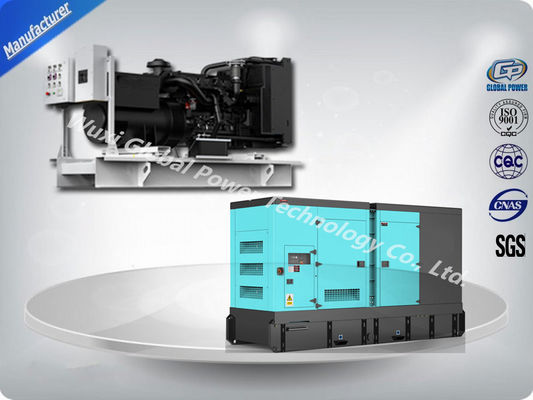

500 KVA Perkins Engine Industrial Generator Set 3 Phase Open Type / Silent Type
Applications:
National defense, energy, power station, transportation, communications, finance, health care, tourism, real estate, mining, factories and so on.
Delivery Detail: 30 days for open type, 60 days for silent type.
Warranty: 1 year or 1000 running hours whichever comes first.
Generator data
Diesel Generator GPP400 (three phase)
| Prime Power (kw/kva): 400 / 500 | Running Noise db(A)/7m(Silent type): 75 |
| Standby Power (kw/kva): 440 / 550 | Battery capacity (V-Ah): 12 V 100 AH |
| Rated Voltage (V): 400 / 230 | Open Type-Dimension (L*W*H) (mm): 3450*1150*1950 |
| Voltage Recovery Time: ≤1S | Open Type-Weight (kg): 3300 |
| Rated Current (A): 721 | Soundproof Type- Dimension (L*W*H) (mm): 4400*1500*2300 |
| Rated Frequency (Hz): 50 | Soundproof Type-Weight (kg): 8350 |
| Frequency Recovery Time: ≤5S | Fuel Tank Capacity(L): 800 |
| Wave Distortion: ≤5%, sine wave | Continuous Running Time(hr.): 8 |

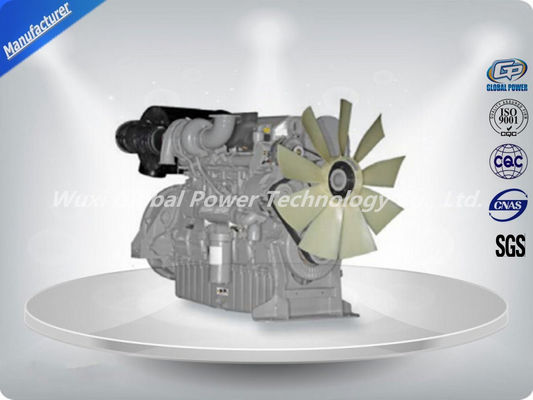

Engine data
Model 2506C-E15TAG2
| Engine brand: Perkins | Speed Governing: Electronic |
| Output Power (kw): 435 | Starting System: 24 V DC Electric |
| Cylinder No. & Config.: 6, in-line | Filter System: Dry oil filter/Fuel filter/Oil filter |
| Combustion System: direct injection | Cooling System: Water-cooled |
| Compression Ratio: 16:1 | Coolant capacity(L): 58 |
| Displacement (L): 15.2 | Fuel Consump.(g/kw·h): 199 |
| Bore X Stroke (mm): 137*171 | Oil Capacity(L): 62 |
| Engine Speed (r/min): 1500 |
Alternator data
Model HCI544C
| Alternator brand: Stamford | Temperature Rise (℃): 125 |
| Rated Power (kw): 400 | Insulation class: H |
| Excitation System: Brushless, self-exciting | Voltage Regulation(0 load): ≥95%～105% |
| Voltage Regulation Mode: AVR | Voltage accuracy: ≤±1%c |
| Connection Type: 3 phases, 4 wires, "Y" connection | Telephone Influence Factor: TIF＜50 |
| Pole No.: 4 | Harmonic Coefficient: THF＜2% |
| Rotation Speed (r/min): 1500 |
FAQ
1.What's the power range of diesel generators?
Power range from 5kva~3000kva.
2.What's the delivery time?
Delivery within 30 days after deposit confirmed.
3.What's your payment term?
We accept 30% T/T as the deposit,the balance payment paid before delivery
4.What's your warranty?
Warranty is one year or 1000 hours which comes first.
5.What's your MOQ?
MOQ is 1 set.
6.What’s the frequency of diesel generators?
50/60HZ
7.What’s the voltage of your diesel generator?
Voltage is 220/380V,230/400V,240/415V, just as per your request.
