Product Details:
Payment & Shipping Terms:
|
| Type: | Soundproof Type | Prime Power: | 650 KVA / 520KW |
|---|---|---|---|
| Standby Power: | 715 KVA / 572 KW | Engine: | Perkins 2806A-E18TAG2 |
| Alternator: | Meccalte ECO40-2L4A | Dimensin(L*W*H): | 4400*1850*2500 MM |
| Weight: | 6050 KG | Fuel Tank Capacity: | 1200 L |
| Highlight: | industrial diesel generators,Industrial Genset |
||

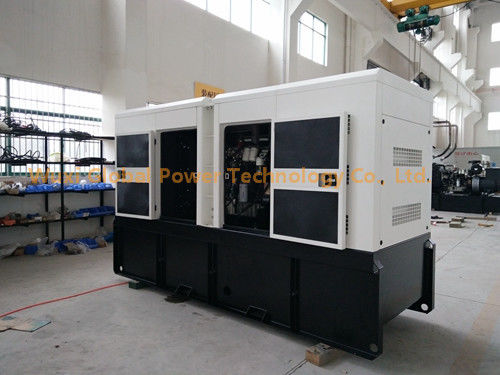

650 KVA Global Power Industrial Generator Set 3 Phases 400V 1500 RPM

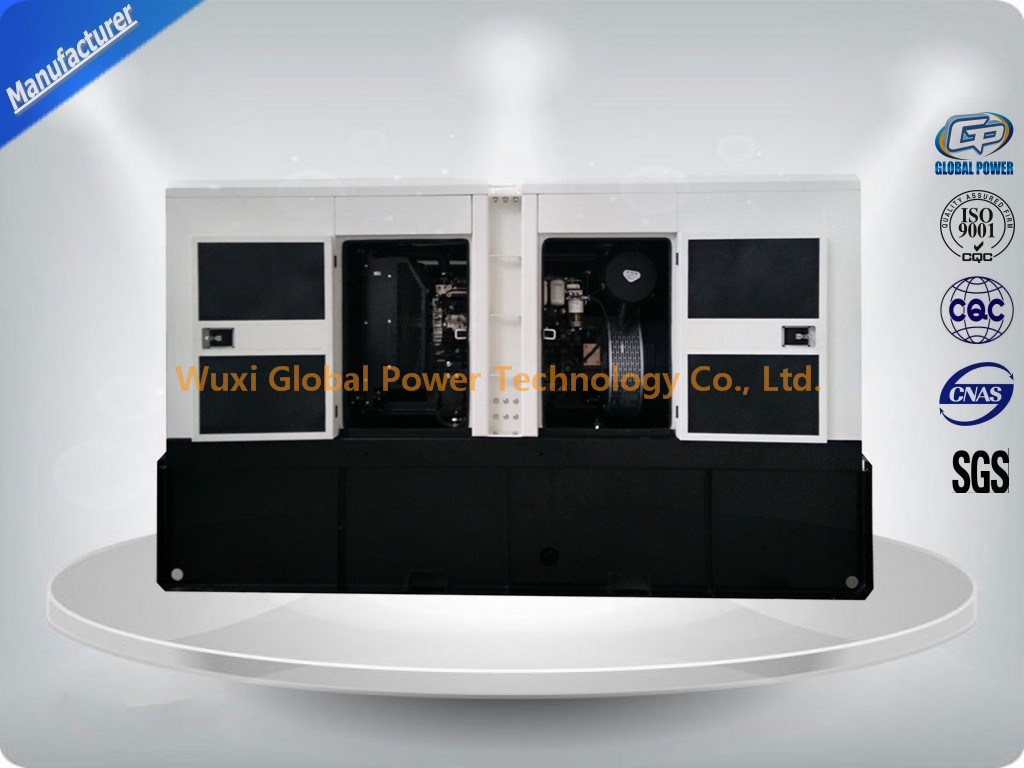

Performance of silent type generator:
1. Fit for generators of 200 KVA - 800 KVA.
2. European-style design, elegant appearance.
3. Plastic spraying technique of the canopy.
4. Deep-funnel design concept for soundproof, to effectively reduce the noise.

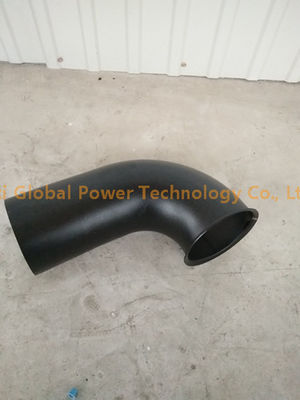

5. Exhaust pipe covered with heat-protection sleeve, to prevent high temperature in the canopy.
6. Noise level: 75dB(A)at 23ft(7m) at normal load.
Generator set: GPP520
| Generator set performance | 50HZ |
| Volltage | 400V / 230V |
| Phase | Three |
| Prime rated power | 650 KVA / 520 KW |
| Standby rated power | 715 KVA / 572 KW |
| Power factor | 0.80 PF |
Engine: Perkins 2806A-E18TAG2
| Performance | 50HZ |
| Prime rated power | 565KW |
| Type | Diesel 4 stroke |
| Aspiration | Turbocharged air to air charge cooled |
| Injection Type | Direction injection |
| Cylinders and arrangement | Six in line |
| Bore and stroke | 145mm*183mm |
| Compression ratio | 18:1 |
| Electicrical system voltage | 24 Volt |
| Battery Type | Lead acid, 24V |
| Derating for temperature | 40 deg C |
| Derating for Altitude | 1000 M |
| Derating for humidity | 90% |
Engine Performance
Air inlet
• Mounted air filter and turbocharger
Fuel system
• Hydraulically actuated electronically controlled unit fuel injectors with full authority electronic control
• Electronic governing to ISO 3046-4 with stand-alone isochronous or load-sharing capabilities
• Spin-on fuel filter with pre-filter and hand primer pump
Lubrication system
• Wet rear well steel sump with filler and dipstick
• Full flow spin-on filters
• Tube-type oil cooler thermostatically controlled
Cooling system
• Thermostatically controlled with belt driven circulating pump and
28 inch belt-driven fan
• Radiator mounted with all guards and pipes
• Air/air charge cooler incorporated in radiator
• Coolant filter/conditioner
Electrical equipment
• 24V starter motor and 24V 45 amp alternator with DC output
• Electronic Control Module mounted on engine with wiring looms and sensors
• 3 level engine protection system
Flywheel and housing
• High inertia flywheel to SAE 3 J620 Size 111/2
• Cast iron SAE 2 flywheel housing
Mountings
• Front engine mounting bracket

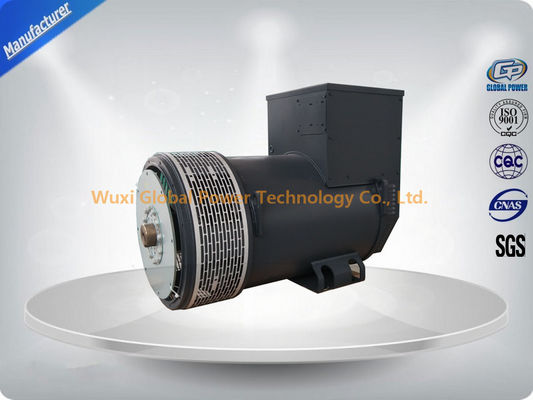

Alternator: Meccalte ECO40-2L4A
| Performance | 50HZ |
| Prime rated power 40 deg C | 536 KW |
| Efficiency | 92% |
| Standard wing connection | Star delta |
| Exciter | Separately excited by P.M.G |
| Poles | 4 poles |
| Phases | Three phases |
| Wires | 12 leads |
| Voltage regulation | +/- 1.0% |
| Insulation class | Class H |
| Enclosure | IP23 |
| Maximum overspeed | 150% |
| Derating for temperature | 40 deg C |
| Derating for Altitude | 1000 M |
Dimensions and capacity
| Fuel tank capacity | Weight | Length | Width | Height | |
| Standard type (Open type) | 800L | 4100 KG | 3400 MM | 1550 MM | 2000 MM |
| Silent type | 1200L | 6050 KG | 4400 MM | 1800 MM | 2500 MM |
-AUTOMATIC MODELS – EQUIPMENT
4 poles ABB circuit breaker, electronic control unit ComAp AMF25-NT control panel box key, emergency stop button, water jacket heater, battery charger, anti condensation heater.
-AUTOMATIC MODELS – PROTECTORS
Low oil pressure, low fuel level, overload, over/ under frequency, low voltage, over/ under battery voltage, belt breakage.
-AUTOMATIC MODELS – INSTRUMENTATION
Voltmeter, ammeter (3 phases), frequency meter, hour meter, battery voltage, fuel level.
1.Dedicated battery charger with boost and flat modes. Battery charger is configured to provide an alarm in event of a fault with the charging system.
2.Robust, clear labelling system with comprehensive schematic drawings.
3.Option of a high spec controller capable of synchronising with other generators or the mains supply. Standard controller can be used in key start or standard AMF mode.
4.The motorised MCCB is fitted with a stunt trip to protect the generator in event of a sudden shutdown.
5.Battery isolator to enable the battery to be switched off in the event of the generator being put into storage for extended periods.
Optional equipment
• 12V starter and alternator
• 12V ECM
• Sensor positions for:
• oil pressure
• oil temperature
• coolant temperature
• SAE 1 flywheel housing and flywheel
• Turbocharger exhaust outlet
• User’s handbook and parts manual
• Workshop manual
