Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 640 KW / 800 KVA | Stanby Power: | 704 KW / 880 KVA |
|---|---|---|---|
| Rated Current: | 1154A | Rated Frequency: | 50 HZ |
| Battery Capacity: | 12V 1000 AH | Open Type-Dimension (L*W*H) (mm): | 4450*1650*2401 |
| Open Type-Weight (kg): | 5100 | Fuel Tank Capacity(L): | 1200 |
| Highlight: | industrial diesel generators,Industrial Genset |
||

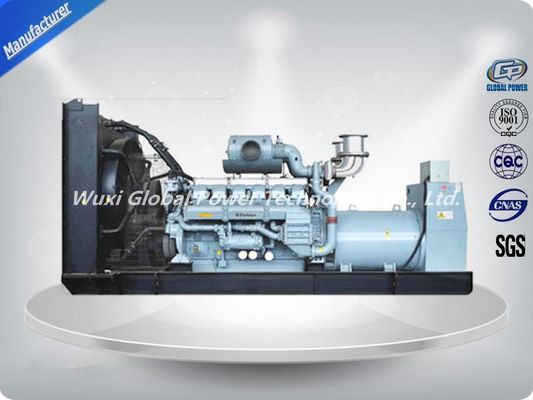

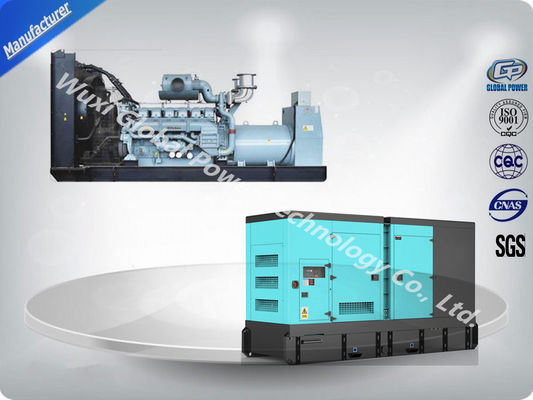

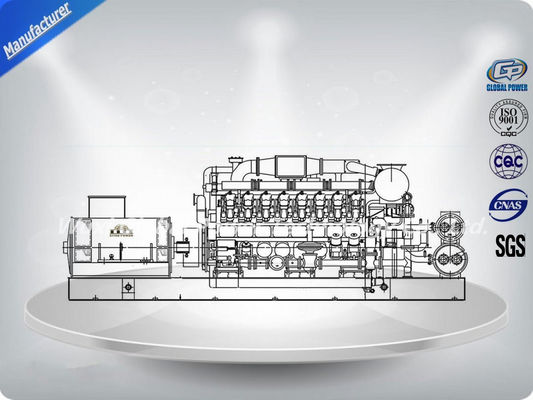

Bigger Size 800 KVA 400 V Industrial Power Generators Perkins Engine High Efficient
Applications:
Military applications, water treatment facilities, transport and logistics, constructionhospitals, clinics and retirement homes, agriculture and food processing, coal mines, etc.
Delivery term: 30 days for open type, 60 days for silent type.
Warranty: 1 year or 1000 running hours whichever comes first.
Features and benefits
1. Tightly structure, excellent design and craft
2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
3. Self-diagnostic capability simplifies troubleshooting
4. LCD display shows system status and setup information
5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
6. Soundproof type: Very quite running–75 dB(A)at 23ft(7m) at normal load.
7. Enclosed muffler for added quietness
8. Service and maintenance accessible through easy-latch side service door
Generator data
Diesel Generator GPP640 (three phase)
| Prime Power (kw/kva): 640 / 800 | Running Noise db(A)/7m(Silent type): 75 |
| Standby Power (kw/kva): 704 / 880 | Battery capacity (V-Ah): 12 V 100 AH |
| Rated Voltage (V): 400 / 230 | Open Type-Dimension (L*W*H) (mm):
4450*1650*2401 |
| Voltage Recovery Time: ≤1S | Open Type-Weight (kg): 5100 |
| Rated Current (A): 1154 | Soundproof Type- Dimension (L*W*H) (mm): 20 ft container |
| Rated Frequency (Hz): 50 | Soundproof Type-Weight (kg): 16900 |
| Frequency Recovery Time: ≤5S | Fuel Tank Capacity(L): 1200 |
| Wave Distortion: ≤5%, sine wave | Continuous Running Time(hr.): 6 |
Engine data

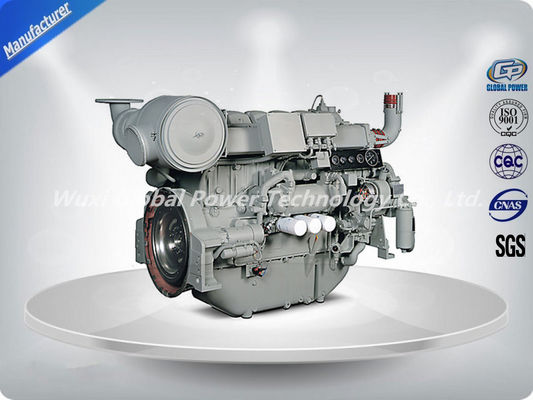

Model 4006-23TAG3A
| Engine brand: Perkins | Speed Governing: Electronic |
| Output Power (kw): 679 | Starting System: 24 V DC Electric |
| Cylinder No. & Config.: 6, in-line | Filter System: Dry oil filter/Fuel filter/Oil filter |
| Combustion System: direct injection | Cooling System: Water-cooled |
| Compression Ratio: 13.6:1 | Coolant capacity(L): 105 |
| Displacement (L): 23 | Fuel Consump.(g/kw·h): 210 |
| Bore X Stroke (mm): 160*190 | Oil Capacity(L): 113.4 |
| Engine Speed (r/min): 1500 |
Alternator data
Model HCI634G
| Alternator brand: Stamford | Temperature Rise (℃): 125 |
| Rated Power (kw): 648 | Insulation class: H |
| Excitation System: Brushless, self-exciting | Voltage Regulation(0 load): ≥95%～105% |
| Voltage Regulation Mode: AVR | Voltage accuracy: ≤±1%c |
| Connection Type: 3 phases, 4 wires, "Y" connection | Telephone Influence Factor: TIF＜50 |
| Pole No.: 4 | Harmonic Coefficient: THF＜2% |
| Rotation Speed (r/min): 1500 |
Product Quality Commitment
1. All products are new products, and meet the present national standard, international standard as well as the industrial standards
2. All products are manufactured according to the ISO9001 Quality Management System strictly.
3. All products are commissioned and tested strictly according to present standard.
4. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
5. All spare parts are original ones.
Packaging Details
1) Wrap by stretch film, and put some drying agent.
2) Strong & firm poly-wood case, can afford rough handling.
