Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Perkins | Engine Model: | 4012-46TWG2A |
|---|---|---|---|
| Cooling System: | Water-cooled | Rated Voltage (V): | 400 / 230 |
| Engine Speed (r/min): | 1500 | Rated Current (A): | 90 |
| Speed Governing: | Electronic | Output Power (kw): | 1113 |
| Highlight: | industrial power generators,Industrial Genset |
||

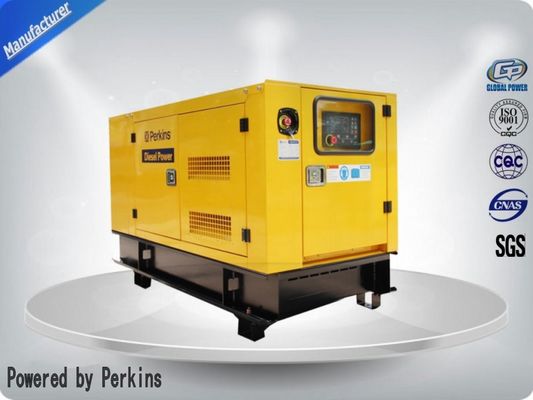

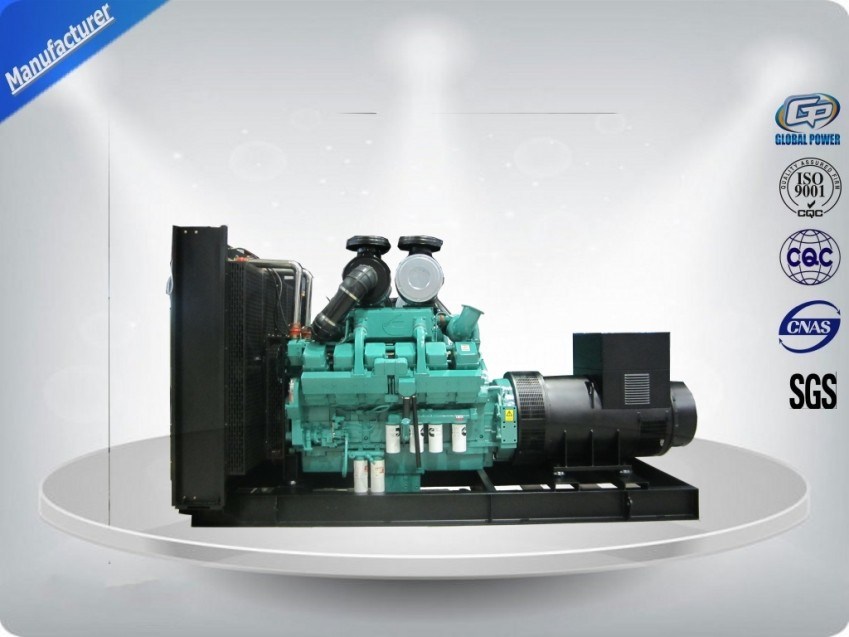

4 Pole Electronic Industrial Power Generators 4 Wires 500-1000Kw 1250Kva
Technical Specifications :
|
Genset |
Prime Power (kw/kva) |
1000 / 1250 |
|
|
Standby Power (kw/kva) |
1100 / 1375 |
||
|
Voltage Recovery Time |
≤1S |
||
|
Rated Current (A) |
2161 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
24V 100Ah |
||
|
Fuel Tank Capacity(L) |
1200 |
||
|
Engine |
Engine brand |
Perkins |
|
|
Output Power (kw) |
1113 |
||
|
Cylinder No. & Config. |
12 in “V” |
||
|
Combustion System |
direct injection |
||
|
Compression Ratio |
13.6:1 |
||
|
Displacement (L) |
45.842 |
||
|
Bore X Stroke (mm) |
160*190 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Electronic |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday… |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3 phase,4 wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Generator soundproof/Silent and canopy
1) Excellent ventilation
2) Black finish stainless steel locks and hinges
3) Zinc plated or stainless steel fasteners
4) Body made from steel components treated with polyester powder coating
5) Two large doors on either side
6) Radiator fill access plate
7) Fully guarded cooling fan and battery charging alternator
8) Fuel fill and battery access via lockable access doors
9) Emergency stop button on canopy exterior
10) Lube oil drain and radiator drain to exterior
11) Control panel viewing window
12) Lifting points on base frame
Our advantages :
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
