Product Details:
Payment & Shipping Terms:
|
| Type:: | Micro-Computer Control Automatic Genset | Rated Current Range: | 36-2088A, Available |
|---|---|---|---|
| Speed: | 1500 / 1800prm | Insulation Class: | H |
| Excitation Mode: | Ac Self-Excited | Export Markets: | Global |
| Rated Voltage: | 220V/380V, 230V/400V, 240V/415V | Installation Method: | Fixed |
| Highlight: | Marine Genset,Emergency Generator Set |
||

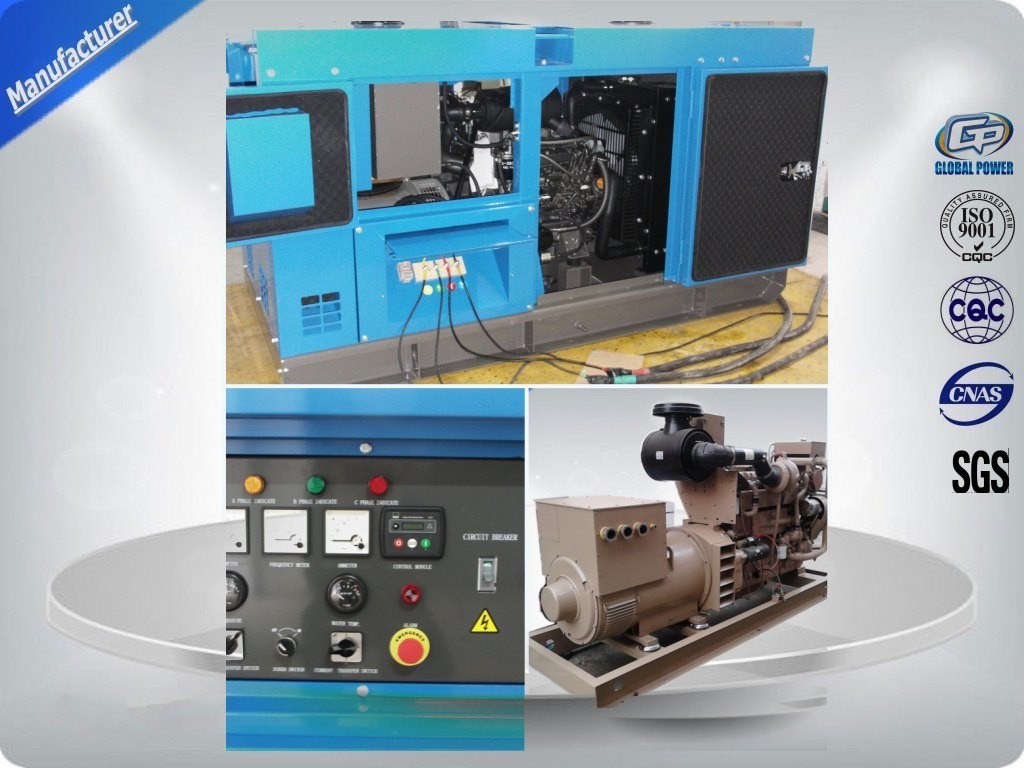

Complete Cummins Marine Diesel Generator including marine diesel engine, alternator, heat exchanger+water pump or radiator, standard control system, circuit breaker, absorber, filters, testing report, marine class certificate, user books and other accessories etc..
CUMMINS Marine Genset Model List :
Specification:
| Engine Standby Output ( LTP) | kW | 360 |
| Engine Prime Output (PRP) | kW | 330 |
| Engine Continuous Power (COP) | kW | 300 |
| Standby Output's Torque | . ( N.M ) | 2292 |
| Prime Output's Torque | . ( N.M ) | 2101 |
| Continuous Output's Torque | . ( N.M ) | 1910 |
| BMEP for Standby Output | bar | 22.48 |
| BMEP for Prime Output | bar | 20.60 |
| BMEP for Continuous Output | bar | 18.72 |
| Speed droop (static) elect. Gov. | 0-5% | |
| Max. step load acceptance, 1st step ( % Prime Output ) | 65% | |
| Basic Performance Datasheet | ||
| Aspiration Type | Turbocharger, air-water aftercooler | |
| Injection Type | Direct Injection | |
| Configuration | In line | |
| No. of Cylinders | 6 | |
| Displacement | l | 12.8 |
| Bore | mm | 128 |
| Stroke | mm | 166 |
| Compression Ratio | 15.5:1 | |
| Piston Speed | m/s | 8.3 |
| Rotation Direction (from flywheel) | Counter Clockwise | |
| Number of Flywheel Teeth | 160 | |
| Flywheel House Size | SAE1-14 | |
| Lubrication System | ||
| Lube Oil Specification | API-CF4 | |
| Oil Capacity | l | 40 |
| Max. Permissible Oil Temperature | °C | 110 |
| Low Oil Pressure Warning | kPa | 200 |
| Low Oil Pressure Shutdown | kPa | 160 |
| Oil consumption (as % of fuel consumption) | max | 0.5 |
| Cooling System | ||
| Coolant Capacity for Engine | l | 18 |
| Max. Permissible Temperature | °C | 90 |
| Max. Coolant Warning Temperature | °C | 95 |
| Max. Coolant Shutdown Temperature | °C | 105 |
| Thermostat Open Temperature | °C | 82 |
| Flow of Coolant pump | m³/h | 19.7 |
| Heat dissipation (engine radiator) | kW | 173 |
| Heat dissipation (CAC) | kW | * |
| Heat dissipation (convection) | kW | 26 |
| Fuel System | ||
| Governor Type | Electrical | |
| Engine Output at prime output | kW | 330 |
| Fuel Consumption at 25% of prime output | l/h | 26.69 |
| Fuel Consumption at 50% of prime output | l/h | 44.49 |
| Fuel Consumption at 75% of prime output | l/h | 61.88 |
| Fuel Consumption at 100% of prime output | l/h | 80.88 |
| Lowest Fuel Consumption Ratio | g/kW.hr | 204.66 |
| Intake & Exhaust System ( On standby Output ) | ||
| Combustion Air Consumption | m³/min | 27.00 |
| Max. Intake Restriction | KPa | 5 |
| Max. Exhaust Temperature (Before Turbo) | °C | 625 |
| Max. Exhaust Temperature (After Turbo) | °C | 485 |
| Max. Exhaust Back Pressure | Kpa | 5 |
| Exhaust Gas Flow | m³/min | 33.00 |
| Exhaust Flange Diameter | mm | 125 |
| Electrical System | ||
| Charging Alternator Voltage | V | 28 |
| Charging Alternator Capacity | A | 35 |
| Starting Voltage | V | 24 |
| Starting Motor Capacity | kW | 6.6 |
| Minimum Battery Capacity | Ah | 2*150 |
Global Power Service:
Ettes Power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested. Warranty is according to our standard conditions: 12 months or 1000 running hours, subject to the earlier one. Furthermore, Ettes Power will provid life-span technical support and spare parts at manufacture prices.
1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience
of more than 10 years. Our total production capacity is about 20,000 units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000
fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator
sets as per your specific requirements.
4. We provide professional & in time service after sale.
