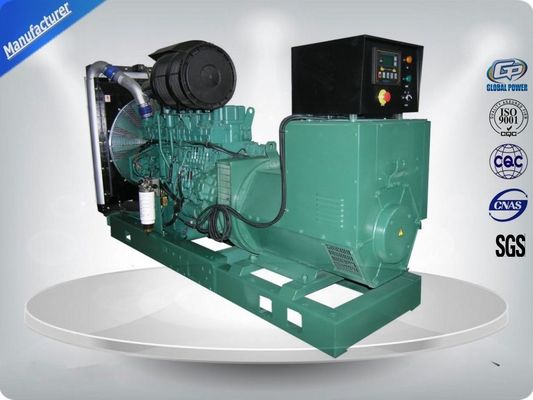

150kW / 188kVA Diesel Engine Generator Set With Volvo Engine Stamford Alternator ISO9001
-
-
Large Image :
150kW / 188kVA Diesel Engine Generator Set With Volvo Engine Stamford Alternator ISO9001
|
Product Details:
| Place of Origin: |
Jiangsu, China |
| Brand Name: |
Global Power |
| Certification: |
OEM/ISO9001 |
| Model Number: |
GPV150 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 set |
| Price: |
negotiable |
| Packaging Details: |
plastic foam or plywood case packing |
| Delivery Time: |
25 working days after receiving down-payment |
| Payment Terms: |
L/C, L/C |
| Supply Ability: |
2,000sets/year |
|
Detailed Product Description
| Prime Power: |
150KW |
Engine Brand: |
Volvo |
| Alternator Brand: |
Stamford |
Rated Current: |
270A |
| Battery Capacity: |
12V 100Ah |
Fuel Tank Capacity: |
320L |
| Weight: |
1590KG |
Displacement: |
7.15L |
| Highlight: |
marine diesel genset, power generating sets |
150kW/188kVA Diesel Engine Generator Set With Volvo Engine Stamford Alternator
Features and benefits:
- Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)Tightly structure, excellent design and craft
- Self-diagnostic capability simplifies troubleshooting
- LCD display shows system status and setup information
- Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
- Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
- Enclosed muffler for added quietness
- Service and maintenance accessible through easy-latch side service door.
- Transient state voltage regulation rate:+20%~-15%Un
- The generator excellent Features:
-
Voltage regulation range:(95%Un ~105%)Un
-
Steady- state Voltage regulation: ≤±1%
-
No-load line voltage sine waveform distortion: ≤5%
- Thermal deviation is zero(ANU).
- Controller features:
- Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
- Security password-protected programming levels
- All parameters use digital modulation, with higher reliability and stability
- Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
- Power supply range is wide, accommodating to different starting battery voltage environment
- Built-in watch dog can never be dead halt, ensuring smooth program execution
- Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Technical Specifications :
Genset:
| Prime Power (kw/kva) |
150/188 |
| Standby Power (kw/kva) |
165/207 |
| Rated Voltage (V) |
400/230 |
| Voltage Recovery Time |
≤1S |
| Rated Current (A) |
271 |
| Rated Frequency (Hz) |
50 |
| Frequency Recovery Time |
≤5S |
| Wave Distortion |
≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) |
75 |
| Battery capacity (V-Ah) |
12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) |
2560*1005*1594 |
| Open Type-Weight (kg) |
1590 |
| Soundproof Type- Dimension (L*W*H) (mm) |
3600*1600*2000 |
| Soundproof Type-Weight (kg) |
4490 |
| Fuel Tank Capacity(L) |
320 |
| Continuous Running Time(hr.) |
8 |
Engine:
Main features:
- Six-cylinder, water-cooled, in-line diesel engine
- Efficient fuel system for max power output and durability
- Large-capacity air cleaner
- Cost effective, fuel efficient and reliable performance
- Functional engine with compact structure
- Excellent after-sales service and sufficient spare parts supplying
- Easy installation and ready access for routine maintenance
Model 2506C-E15TAG2
| Output Power (kw) |
162 |
| Cylinder No. & Config. |
6, in-line |
| Combustion System |
direct injection |
| Compression Ratio |
18:1 |
| Displacement (L) |
7.15 |
| Bore X Stroke (mm) |
108*130 |
| Engine Speed (r/min) |
1500 |
| Speed Governing |
Electronic |
| Starting System |
24V DC Electric |
| Filter System |
Dry oil filter/Fuel filter/Oil filter |
| Cooling system |
Water-cooled |
| Coolant capacity (L) |
37.1 |
| Fuel Consump. (g/kw·h) |
213 |
| Oil Capacity (L) |
34 |
Alternator:
Main features:
- Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
- 2/3 pitch winding as standard, to avoid excessive neutral currents
- Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
- Easy access for installation and maintenance
- IP23 as standard
- Self-excited control system
- Resist of corruption of oil and acid
Model HCI544C
| Rated Power (kw) |
144 |
| Excitation System |
Brushless, self-exciting |
| Voltage Regulation Mode |
AVR |
| Connection Type |
3phase,4wires,”Y” connection |
| Pole No. |
4 |
| Rotation Speed (r/min) |
1500 |
| Temperature Rise (℃) |
125 |
| Insulation class |
H |
| Voltage Regulation (0 load) |
≥95%～105% |
| Voltage accuracy |
≤±1% |
| Protection Grade |
IP23 |
| Telephone Influence Factor |
TIF＜50 |
| Harmonic Coefficient |
THF＜2% |

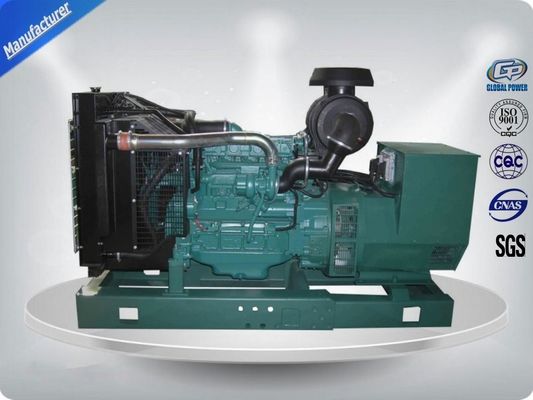

Our Picture :
