Product Details:
Payment & Shipping Terms:
|
| Air Flow: | 5.8-8.0m3/Min | Configuration: | Stationary |
|---|---|---|---|
| Type: | Piston Reciprocating Drive | Mode: | AC Electric Motor Lubrication |
| Style: | Oil Lubricated | Weight: | 600kg |
| Pressure: | 0.7MPa-1.3MPa | Export Markets:: | South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
| Highlight: | quiet air compressor,screw air compressor |
||
| Capacity(m³/min) | Power | Noise | Outlet Diameter | Dimension | Weight | ||||
| 0.7Mpa | 0.8 Mpa |
1.0MPa | 1.3Mpa | KW/HP | dB(A) | INCH | WxDxH mm | Kg | |
| 1.6 | 1.5 | 1.3 | 1.1 | 11/15 | 65±2 | G3/4" | 1150x680x1000 | 450 | |
| 2.5 | 2.3 | 2.1 | 1.9 | 15/20 | 65±2 | G3/4" | 1150x680x1000 | 450 | |
| 3.2 | 3.0 | 2.6 | 2.2 | 18.5/25 | 65±2 | G1" | 1350x850x1080 | 600 | |
| 3.7 | 3.6 | 3.2 | 2.7 | 22/30 | 68±2 | G1" | 1350x850x1080 | 650 | |
| 5.2 | 5.0 | 4.3 | 3.7 | 30/40 | 70±2 | G1" | 1350x850x1080 | 850 | |
| 6.5 | 6.2 | 5.6 | 4.8 | 37/50 | 70±2 | G11/2" | 1460x960x1300 | 920 | |
| 8.0 | 7.3 | 6.8 | 5.8 | 45/60 | 70±2 | G11/2" | 1460x960x1300 | 1100 | |
| 10.1 | 9.5 | 8.7 | 7.5 | 55/75 | 72±2 | G2" | 1720x1200x1380 | 1500 | |
| 13.5 | 12.8 | 11.3 | 10.1 | 75/100 | 72±2 | G2" | 1860X1260X1520 | 1850 | |
| 16.0 | 15.5 | 13.5 | 12.0 | 90/125 | 73±2 | G2" | 1860X1260X1520 | 2200 | |
| 20.8 | 19.5 | 17.5 | 14.5 | 110/150 | 73±2 | DN65 | 2160x1380x1780 | 2800 | |

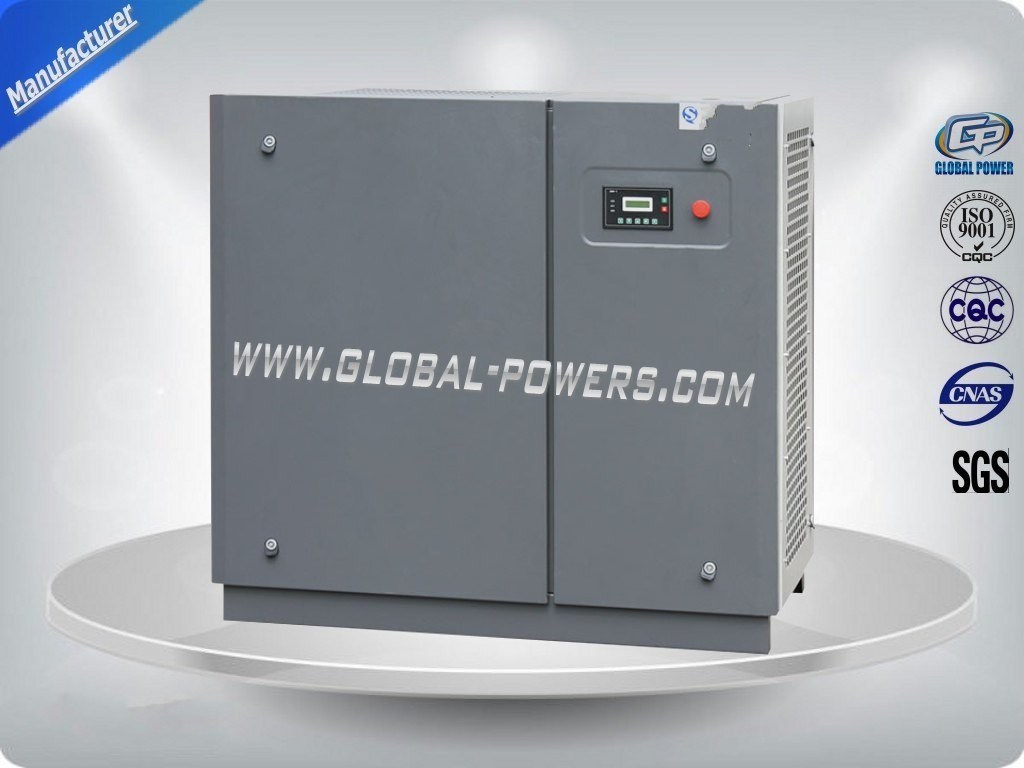

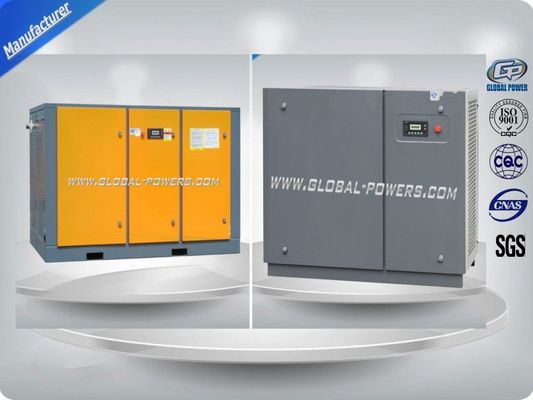

1.The combined screw air compressor integrates the parts including screw compressor,air dryer,high efficiency air filter and air tank,making it convenient for the user to install,use and move.
2.After the air pass the integrated system,the quality of the air is made largely better to satisfy the process requirements of various companies.
3.Beautiful appearance,reliable performance and excellent economy make it one of our most important export series.
Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
Company Profile:
Wuxi Global Power Technology Co., Ltd is located in national Hi-tech Nanchang district, Wuxi city, Jiangsu, China, which is famous as the ‘source of power’. Our company is a key-enterprise of being engaged in research, development, manufacture and exportation of energy-saving and environment-friendly generating sets, related parts and supporting equipment.
We mainly produced “Global Power” brand three-phase brushless synchronous alternators and many kinds of diesel generator sets, such as open generator, silent/soundproof generator, outdoor power plant, containerized gensets, trailer gensets and equipments of construction machinery like mobile light tower, forklift, air-compressor and so on.
